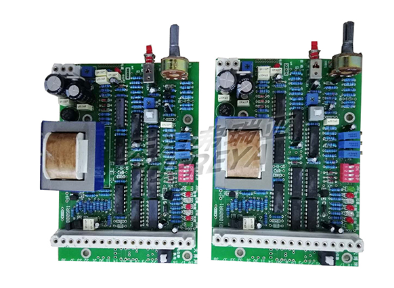

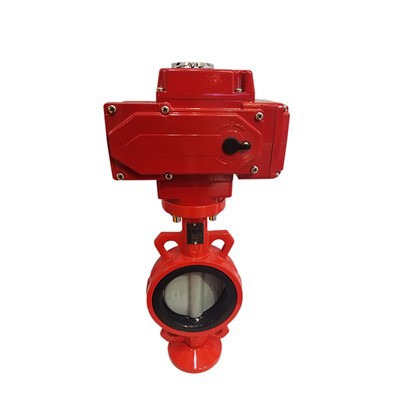

Control board
Product specifications
Automatic control:
· 1.input signal: DC 4-20mA
· 2.Output signal: DC 4-20mA
· 3.Operate direction: standard positive function:4ma counterclockwise rotation, valve is close,20ma clockwise vavle is open
· nonstandard reverse action: 4ma clockwise rotate, vavle is close; 20ma counterclockwise rotation, vale is open.
· 4. State of fault signal: standard: when loss 4-20ma signal, the actuator keep normal position. · Nonstandard: standard: when loss 4-20ma signal, the actuator is close · Nonstandard: standard: when loss 4-20ma signal, the actuator is open
· 5.Dead zone: Though the dead zone to adjust potentiometer (P3),dead range:0-3% mean 0-480uA
· 6. This machine is run manually: This machine is run manually that make locator simulate a 4-20ma input signal, make actuator running.
Remote control · 1. Remote control for the passive dry contact control, Under the dry contact control, can make the actuator receives the remote switch command, complete valve opening and closing, the remote control is prior to the automatic control, when the controller is in remote position, the automatic control will be closed, which doesn't work
· 2.the running direction of actuator · Standard form: actuator(facing the output shaft) Clockwise to open it, counterclockwise to close it.
· Nonstandard form: actuator(facing the output shaft) Clockwise to close it, counterclockwise to open it.
· 3. The electric brake configuration
· One phase(220v AC) Configuration of electric braking complete by dial the code switch Three phase(380v AC) the plate electric braking function doesn't work through dial the code switch , actuator electric braking performed by external circuit.
· LED indication:(lining)
· LED1(green)the actuator is open
· LED2(red)the actuator is close
· LED3(green) open lead limit
· LED4(red)close lead limit
· LED4(yellow)over-torque on-off action
· LED6(red)loss 4-20ma signal
· LED7(green) electric braking doesn't work(pay attention: when in 3phase, electric braking doesn't work)
· LED8(red)power indicator
Specifications
Digital micro-control allows :
Push button proramming
- eliminates Span and Zero pots 10-bit resolution Off-line calibration
- eliminates the need for loop calibrators
Operating temperature : +32°F to +158°F (0°c - 70°c)
Storage temperature : -40°F to + 185°F (-40°c - 85°c)
Relative humidity : 0 to 90% non-comdensing
1.Input signal: 4-20 mA
2.Output signal: 4-20 mA
3.Direction: standard: 4 mA------valve closed
20 mA-----valve opened Inverse direction: 4 mA------valve opened
20 mA-----valve closed 4. Dead zone: 0-3%
5. Operated automatically
6. Adjustment: 0% to receive 4m A signal
7. Adjustment: 100% to receive 20m A signal
