Bus&wireless communication

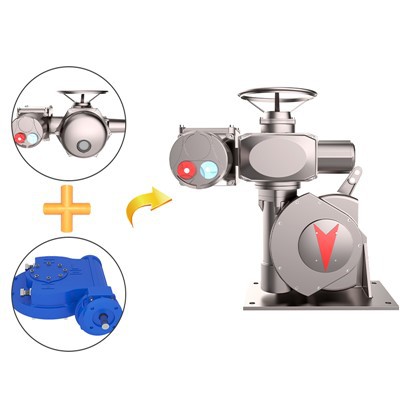

Quarter-turn actuators are used to operate ball, plug or butterfly valves, dampers, shutter valves, and any angular or part-turn device.
Product specifications
Scope of Application
Design Structure
Box Body Material
Use aluminum alloy with strong corrosionprotection.Compare to traditional box body.it hasthe advantages of lightweight and high strength.Even there is no-paint on the box body. Surpass 5Profitron can be used outdoors under the normaenvironment.We still can provide special paintwith strong corrosion protectionin hostileenvironments(such as use in cooling tower).
Operate actuator on site through open/close button
Use aluminum alloy with strong corrosionprotection.Compare to traditional box body.it hasthe advantages of lightweight and high strength.Even there is no-paint on the box body. Profitron can be used outdoors under the normaenvironment.We still can provide special paintwith strong corrosion protectionin hostileenvironments(such as use in cooling tower).
Stainless steel bolt
In order to ensure superiorcorrosion resistance inlongterm.all the camping unitsare using stainless steel.
Handle
Can be locked to protect unauthorizedoperate.
Encoder
t adopts the absolute encoder with highprecision,which makes control precisionof the actuator can reach 0.3%
Profibus
Profibus Dp is a type of fieldbus which applies to factory automation, power station and machineautomation, Due to the simple and strong physical laver (RS-485) and severa levels of serviceDp-V0 (rapid cycling and determinate data exchange), Dp-V1 (non-cyclical accessing equipmentparameters and diagnostic data), and Dp-V2 (more features), Profibus Dp is the most suitable forthe factory automation.
profitron supports Profibus Dp,it has following features:
Support Profibus Dp-V0,Dp-V1,Dp-V2
High speed data exchange (reach 1.5Mbit/s corresponding to about 0.3ms/actuator)
Cable length is about 10Km (the length between two actuators is about 1200m).
About 126 devices can be attached
Redundancy bus topology as an alternative
To Profibus Dp, basic topologies is go through RS 485 results, see chart:
Modbus is a relatively simple but multifunction field-bus protocol. lt provides all the service for thefactory automation (e.g: simple binary information, analog quantity, device parameters ordiagnose data exchangel.
High speed data exchange (reach 115Mbit/s corresponding to about 30ms/actuator)
Cable length is about 10Km (the length between two actuators is about 1200m)
About 247 devices can be attached
Redundancy bus topology as an alternative
*To Modbus RTU, basic topologies are going through RS 485 results, same as Profibus Dp.
APP Control
Using mobile to control the electric actuator
The user can remote control the actuator by the mobile software/app, the app can debug, operate,monitorand diagnose the actuator via wireless connection,evendownload,save and upload information from far away.bring the convenience to the users.
Visualization
Debugging convenient
Operation and monitoring functions
Diagnostic function
Download,save,upload all the information
