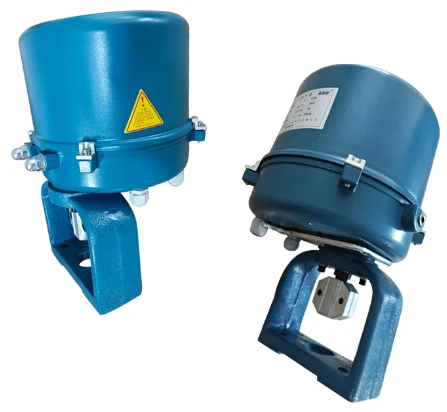

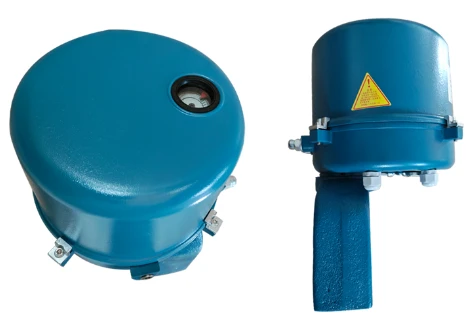

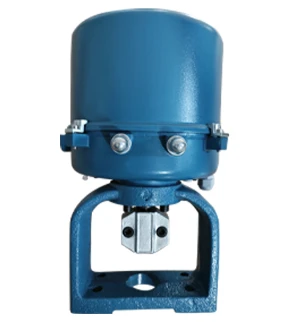

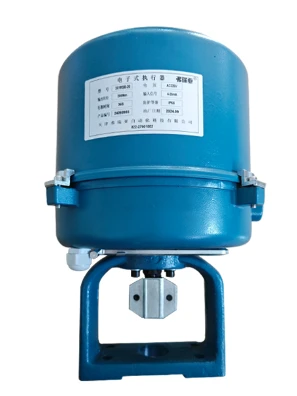

Part-turn Electric Actuator
The 361 series quarter-turn electronic electric actuators are powered by 220V AC power supply and receive 4-20mA DC from a computer, a regulator or an operator, or 1-5 VDC control signal to run the all-electronic actuator, the machine has servo system, no need for additional servo amplifier, the key components of the controller using advanced hybrid integrated circuit, and resin casting curing, after aging treatment, high reliability, moisture-proof, shock-proof, using the base, crank way of installation, the position of the zero point of the crank can be determined within 0 ~ 360 degree. In addition, the actuator has three protection functions: overload protection, temperature protection and torque switch protection, which has high control accuracy and high reliability, the utility model can be combined with various quarter-turn regulating mechanisms to form an quarter-turn electric regulating valve.
Features
1. The control module adopts hybrid integrated circuit, and sealed resin is cast and cured, with high reliability, moisture-proof and shock-proof.
2. The actuator itself has a servo function, no need to add a servo amplifier.
3. Electronic overload protection unit can be installed, optional for A and B types, standard for C and D types.
4. There is a temperature protection switch inside the motor.
5. The motor is equipped with a mechanical damping brake system.
6. Use the potentiometer to adjust the zero point, stroke, sensitivity, convenient and easy.
7. Use the function switch to arbitrarily select the positive and negative actions, and select the three states of the off signal (self-locking, fully open, fully closed).
8. The output shaft of the linear actuator is equipped with a spring to ensure the rated load.
9. The quarter-turn actuator can be equipped with a torque protection switch. 10. After the power is cut off, the actuator is self-locking.
Main Technical parameters
Main technical parameters of 361series actuator
3610R parameters
|
Category |
Model |
Output torque N.m |
Action time s/90˚ |
Rotation angle |
|
Normal type |
361RSA-02 |
20 |
8.5 |
90° |
|
361RSA-05 |
50 |
17 |
||
|
361RSB-10 |
100 |
18 |
||
|
361RSB-20 |
200 |
36 |
||
|
361RSC-30 |
300 |
24 |
||
|
361RSC-50 |
500 |
42 |
||
|
361RSC-60 |
600 |
48 |
||
|
361RSD-100 |
1000 |
30 |
||
|
361RSD-150 |
1500 |
42 |
||
|
Explosion-proof type |
361RXB-10 |
100 |
18 |
|
|
361RXB-20 |
200 |
36 |
Performance Indicators
Performance indicator
|
|
Indicator value |
|
Base error% |
±1.0 |
|
Return difference% |
1.0 |
|
Dead Zone% |
0.8~1.0 can adjust to 0.4 |
|
Resolution% |
<0.4 |
|
Adjust the range |
Zero ± 25% , rotation angle 20% ~ 100% |

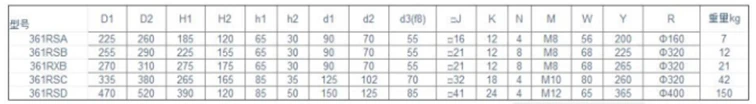

Note: In the table, H2 is the necessary size for removing the cover, R is the necessary size for manual operation, which should be considered in the design and installation.
Company Profile
Founded in 2014, Freya is mainly engaged in fluid control products and services such as actuators, valve electric devices, and electric valves. It focuses on the field of process industry and has long been committed to providing professional According to the actual working conditions, through the necessary on-site surveying and mapping and technical clarification, we provide customers with safe, economical and environmentally friendly selection and design, supply strictly in accordance with the contract requirements and guide the installation and commissioning, and hand over for use after reaching the standard. Thanks to the trust of the vast number of users, through long-term and extensive on-site services and the effective accumulation of technical experience, the company accurately understands the real needs, pain points and expectations of equipment manufacturers of users and the market. Intelligent electric actuator, reliable, durable, easy to use, cost-effective, and guaranteed service. Being close to users, providing full-process services, comprehensive services, value-added maintenance services, and escorting users' production is our differentiated advantage. Freya SD intelligent electric actuators and valve electric devices provide a two-year warranty after installation and commissioning, and free after-sales service for life. Technical quality and commercial credit are the foundation of the company's survival and the two wheels that drive the company's development. Users feel at ease, peace of mind, and happiness, which is the only criterion for evaluating our work effect and demonstrating the value of existence. Many of the company's customers are located in thermal power, petrochemical, coal chemical, water treatment and other fields, all over the country, including more than 100 end users belonging to the five major power generation groups, the three major nuclear power groups, Sinopec, PetroChina and local energy groups.
