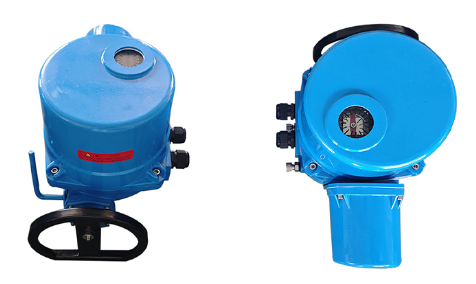

QT ELECTRIC VALVE ACTUATOR
QT series power-off reset electric valve actuator is used to control valves with a rotation of 0°-90° and other similar products, such as butterfly valves, ball valves, dampers, plug valves, louver valves, etc. It uses AC110V, 220V, 380V AC power supply and DC24V DC power supply as the driving power supply. The actuator has its own power supply. It can be widely used in petroleum, chemical industry, electricity, metallurgy, pharmaceutical, papermaking energy, water treatment, shipbuilding, textile, food processing, building automation and other fields. At thesame time, it has many advantages such as small size, light weight, exquisite appearance, unique structure compactness, quick opening and closing, easy installation, small operating torgue, convenient operation, digital display of valve position, no maintenance required, safe and convenient use, etc.
PRODUCT DESCRIPTION
● Torque range: 60~1500Nm
● Provide IP67 explosion-proof housing (ATEX type optional)
● Basic control method:
- On-off type
- Modulating type
- Continuous modulating type
● Provide different control methods according to customer requirements:
- Ordinary on-off type
- Ordinary modulating type
- Non-invasive integrated type
- Intelligent type
- Fieldbus type
Sealing protection…………According to GB/4208-2017 standard, IP67 (standard, all connection surfaces are sealed with O-rings), optional IP68 (connection surfaces are equipped with double O-rings).
Explosion-proof grade……According to GB/3836, IEC, CU-TR standards, ExdII design. ATEX certification, meeting all potential explosive environments (such as oil, natural gas, chemical, electric power, metallurgy and emerging gas industries, etc.).
Anti-corrosion protection…………After anodizing and polyester powder coating, it has strong corrosion resistance and is suitable for industrial corrosion environments (chemical, alumina plants) or marine corrosion environments (offshore).
Ambient temperature…………Standard: ordinary on-off type, ordinary modulating type (-30℃--+75℃) Intelligent type, non-invasive integrated type (-25℃--+70℃) Low temperature: ordinary on-off type, ordinary modulating type (-60℃--+50℃), intelligent type, non-invasive integrated type (-40℃--+60℃)
FEATURES OF ELECTRIC ACTUATORS
• Compact and robust construction, lightweight while providing high output torque (Max 10000Nm).
• Wide range of torque variation (From min 60Nm to max 10000Nm).
• Hard anodized aluminum housing inside and outside with external powder coating for use against severe industrial environment.
• Enclosure uses radial seals & O-rings that provide protection to waterproof IP67 (NEMA 4 & 6) and optional watertight lP68.
• Dual mounting base lSO5211 standard and KV standard.
• Removable drive bushing for easy machining and mounting.
• Self-locking provided by double worm gearing (no brake required).
• Auto-declutching manual override handwheel with padlockable auto/manual switchable lever.
• Reliable mechanical torque sensing system providing safe operation in overload condition.
• Large size window and indicator provides better position indication from a distance.
• Number of local position control options to provide easy commissioning and feld operation.
• Digitalized control components.
PROEDUCT STRUCTURE
DESIGN FEATURES AND MAIN FUNCTIONS
Shell
Hard anodized die-cast aluminum shell, external epoxy powder uncoated, suitable for harsh working environment.
Input voltage range
Three-phase: AC340V~420V 50/60HZ Single-phase: AC220V~240V 50/60HZ
Features
The microcomputer control board collects proportional signal input internally, and the output command signal is processed to directly drive the motor to realize the opening and closing of the actuator, and provides proportional signal feedback, proportional signal control, and multi-channel field programmable relay output.
Control type
Control signals are divided into on-off type and modulating type, power supply is divided into on-off type and modulating type, and power supply is single-phase and three-phase. The on-off type only accepts the switch signal provided by the external, which is processed by the microcomputer control board. The output command is amplified and directly drives the actuator motor to perform remote opening and closing actions. The modulating type can receive the proportional signal provided by the external on the basis of the on-off type
Ambient temperature
Working temperature range. ≤90%RH, no condensation, -25C~+60C (special temperature needs to be customized),
Protection grade IP68, explosion-proof level ExdII CT4GB
Working duty: short-term 10 minutes
STANDARD SPECIFICATIONS
|
Protection grade |
Standard IP65/IP67 Special IP68 |
|
Power supply |
Three-phase AC380V---460V 50/60Hz Single-phase: AC110V-AC220V DC24V AC24V 50/60Hz |
|
Duty cycle(on-off) |
S2-15min |
|
Duty cycle(modulating) |
S4-25% |
|
Motor |
Squirrel cage induction motor |
|
Limit switches |
1 each for open and close (SPDT 250VAC/16A rating) |
|
Torque switches |
1 each for open and close (SPDT 250VAC/16A rating) |
|
Jam protection |
Build-in overheat protection |
|
Travel angle |
90° |
|
Position indicator |
Continuous mechanical indicator with arrow |
|
Self locking |
Provided by double worm gearing (no brake) |
|
Mechanical stopper |
1 each for each travel end (open and close), external & adjustable |
|
Ambient temperature |
Standard: -20～+70℃ Optional: -20～+60℃ |
|
Ambient humidity |
90%RH max (Non-condensing) |
|
Explosion-proof grade |
ExdIIBT4 IECEx ATEx customized certification can be provided |
|
Functions |
LCD Chinese / English display window and local operation function Self phase sequence identifying and phase disconnection protection Infrared setting and control Fault self-diagnosis technology Modbus, Profidbus DP, Hart |
|
Signal |
A: Remote passive dry contact, signal short pulse (Inching). B: Remote passive dry contact, signal long pulse (hold). C: Active DC24V signal. D: Active AC220V signal. E: Remote DC4-20mA signal. |
|
Feedback signal |
A: Open, close, stop signals (passive dry contact). B: Fault signal (passive dry contact). C: Valve position signal (DC4-20mA, DC1-5V, DC0-10V) D: Remote control signal (passive dry contact) |
PRODUCT ACCESSORIES
TECHNICAL PARAMETERS
|
Model |
Spec. |
Output torque (N·m) |
Output speed (r/min) |
Maximum stem diameter (mm) |
Motor power (Kw) |
Motor current (A) |
Travel time (s) |
Reference weight (KG) |
|
|
Rated |
Jam |
||||||||
|
QTR1 |
QTR06-1 |
60 |
1 |
22 |
0.025 |
0.3 |
0.6 |
15 |
9 |
|
QTR09-1 |
90 |
1 |
22 |
0.025 |
0.3 |
0.6 |
15 |
9 |
|
|
QTR2 |
QTR05-1 |
50 |
1 |
22 |
0.025 |
0.3 |
0.6 |
18 |
10 |
|
QTR10-1 |
100 |
1 |
22 |
0.025 |
0.3 |
0.6 |
18 |
10 |
|
|
QTR10-2 |
100 |
2 |
22 |
0.04 |
0.6 |
0.9 |
9 |
12 |
|
|
QTR15-1 |
150 |
1 |
22 |
0.04 |
0.6 |
0.9 |
18 |
12 |
|
|
QTR15-2 |
150 |
2 |
32 |
0.06 |
0.7 |
1.1 |
9 |
13 |
|
|
QTR20-1 |
200 |
1 |
32 |
0.06 |
0.7 |
1.1 |
18 |
13 |
|
|
QTR20-2 |
200 |
2 |
32 |
0.06 |
0.7 |
1.1 |
9 |
13 |
|
|
QTR3 |
QTR30-0.5 |
300 |
0.5 |
32 |
0.06 |
0.5 |
1 |
24 |
17 |
|
QTR30-1 |
300 |
1 |
32 |
0.06 |
0.5 |
1 |
12 |
17 |
|
|
QTR30-2 |
300 |
2 |
32 |
0.09 |
0.8 |
1.7 |
6 |
18 |
|
|
QTR40-0.5 |
400 |
0.5 |
32 |
0.09 |
0.8 |
1.7 |
24 |
18 |
|
|
QTR40-1 |
400 |
1 |
32 |
0.09 |
0.8 |
1.7 |
12 |
18 |
|
|
QTR40-2 |
400 |
2 |
32 |
0.09 |
0.8 |
1.7 |
6 |
18 |
|
|
QTR4 |
QTR60-0.5 |
600 |
0.5 |
42 |
0.12 |
1 |
2 |
28 |
22 |
|
QTR60-1 |
600 |
1 |
42 |
0.12 |
1 |
2 |
14 |
22 |
|
|
QTR60-2 |
600 |
2 |
42 |
0.18 |
1.5 |
2.5 |
7 |
25 |
|
|
QTR80-0.5 |
800 |
0.5 |
42 |
0.18 |
1.5 |
2.5 |
28 |
25 |
|
|
QTR80-1 |
800 |
1 |
42 |
0.18 |
1.5 |
2.5 |
14 |
25 |
|
|
QTR80-2 |
800 |
2 |
42 |
0.18 |
1.5 |
2.5 |
7 |
25 |
|
|
QTR100-0.5 |
1000 |
0.5 |
42 |
0.18 |
1.5 |
2.5 |
28 |
25 |
|
|
QTR100-1 |
1000 |
1 |
42 |
0.18 |
1.5 |
2.5 |
14 |
25 |
|
DIMENSIONS
QTR1-3 Ordinary power-off reset type
QTR4-5 Ordinary power-off reset type
|
Model |
A1 |
A2 |
A3 |
B |
B1 |
D |
D1 |
D2 |
E |
H |
H1 |
H2 |
H3 |
L |
L1 |
L2 |
L3 |
|
QT1 |
44 |
17 |
36 |
75 |
68 |
102 |
170 |
166 |
126 |
60 |
256 |
109 |
179 |
215 |
60 |
300 |
|
|
QT2 |
49.5 |
22.5 |
30 |
85 |
77.5 |
200 |
200 |
166 |
130 |
64 |
263 |
113 |
187 |
238 |
76 |
320 |
|
|
QT3 |
60 |
33 |
35 |
100 |
77 |
250 |
220 |
166 |
27.5 |
136 |
70 |
298 |
119 |
202 |
241 |
76 |
323 |
|
QT4 |
70 |
43 |
38 |
115 |
87 |
250 |
260 |
166 |
144 |
78 |
342 |
127 |
225 |
259 |
76 |
341 |
|
|
QT5 |
70 |
43 |
38 |
130 |
130 |
250 |
260 |
166 |
234 |
185 |
449 |
234 |
225 |
283 |
76 |
341 |
