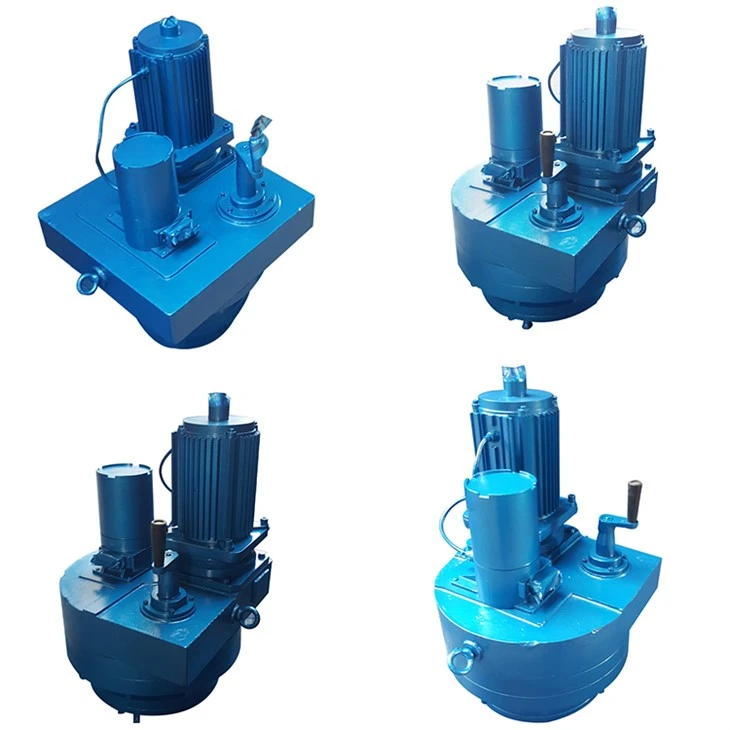

DKJ product features
DKJ type electric actuator is the execution unit of DDZ type electric unit combined detection and adjustment instrument. it accepts regulation. The signal of the transmission unit can automatically complete the adjustment task, and is widely used in power stations, metallurgy, chemical industry, petroleum, building materials, light industry, water treatment, urban construction and other industrial sectors.
Main Technical Parameters
1.Input signal: Type m 4-20mA DC
2.Input channel: 3
3.Input channel impedance: Type II 250Ω
4.Output torque: See table above
5.Total travel time: See table above
6.Output signal: 4-20mA Dc, on-load capacity≦750Ω
7.Limit of basic error:±2.5%
8. Dead zone: 0.5%-1.5% adjustable
9. Damping characteristic:≦3 half cycles
10. Return difference:≦1.5%
11. Power supply voltage:220V (±10%, ±15%) Frequency 50Hz
12. Service environment temperature: Actuator:-10~+55°C or -25~+70°C; amplifier. 0~+50°C
13. Relative humidity of service environment: Actuator: ≦85% (without corrosive substances in ambient air)
Electric actuator structures
Low Temperature Customization
DKJ series low-temperature valve electric device is based on the common type, the material of the main box and other stressed parts, the material of the electronic control device and the wire, the material of the rubber seal, the grease, the performance and power of the motor, etc. Corresponding measures have been taken to achieve the low-temperature performance that the product should have. According to the test methods and procedures of the imported technical documents, the low-temperature test of our company's typical machine base prototype has been carried out by an authoritative research institution, and all have achieved ideal results. It meets the requirements of the test and has the actual conditions of use. The flange form, size, and overall dimensions of the SMC series low-temperature valve electric device are the same as those of its ordinary products (or general explosion-proof products). Please refer to the relevant samples for selection.
Applicable temperature range
Low temperature type I temperature range -25°C~-40°C Low temperature type II temperature range -40°~-500°C Note: The ambient temperature of the low temperature type II electrical equipment should not exceed 40°C Inspection process The method is to place the electrical equipment (with a test bench) in a low-temperature freezer and keep it in an ultra-low temperature environment of -55°C for a long time, and then carry out relevant performance tests to ensure normal operation and good performance.
Duty Classification Customization
Continuous working system-continuous running duty type S1.
Short time working system-short-time duty-duty type S2.
Intermittent periodic-intermittent periodic duty-duty type S3.
Including the intermittent periodic starting system-intermittent periodic duty with starting-duty type S4.
The intermittent periodic working system includes the electric brake-intermittent periodic duty with electric braking-duty type S5.
Continuous periodic working system-continuous-operation periodic duty-duty typeS6.
Including the electric brake of the continuous periodic work system-continuous-operation periodic duty with electric braking-duty typeS7.
A continuous periodic operating system that includes a corresponding change in load-speed-continuous-operation periodic duty with related load-speed changes-duty type S8.
Load and speed of non-periodic changes in the working system-duty with non-periodic load and speed variations-duty type S9.
Discrete constant load system-S10 working system.
Overall and Installation Dimensions
