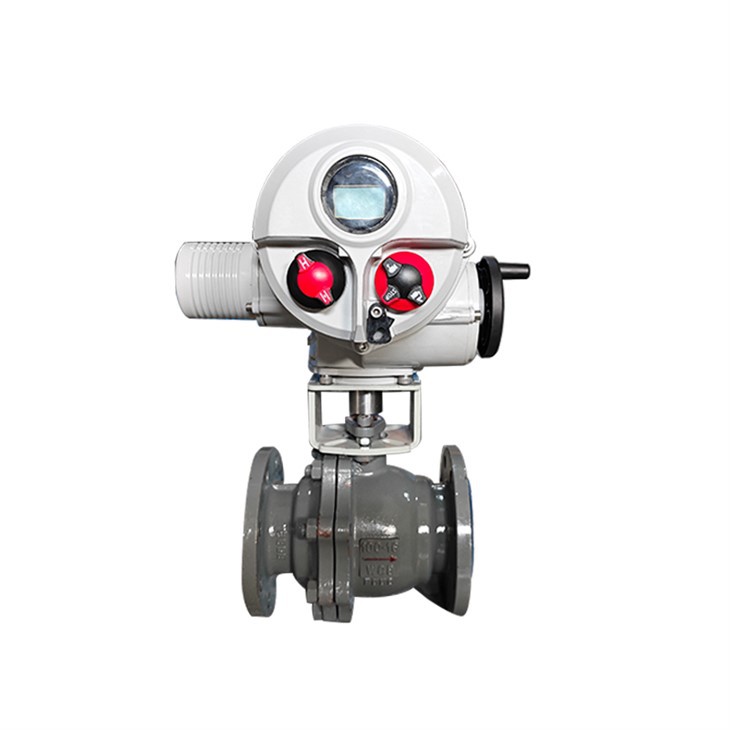

Electric ball valve
A ball valve is a valve with a ball as a closing part. It is mainly composed of a valve body, a valve seat, a ball, a valve stem, a handle (or other driving devices, such as electric actuators, pneumatic actuators or hydraulic actuators). The valve stem drives and rotates around the axis of the ball valve. It is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.
Electric ball valve types
1. Floating ball valve
The ball of the ball valve is floating. Under the action of medium pressure, the ball can produce a certain displacement and press tightly against the sealing surface of the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but all the load of the working medium on the ball is transferred to the outlet sealing ring. Therefore, it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in medium and low pressure ball valves.
2. Trunnion ball valve
The ball of the ball valve is trunnion and does not move when pressed. Trunnion ball and ball valves all have floating valve seats. After being subjected to medium pressure, the valve seat moves, causing the sealing ring to press tightly on the ball to ensure sealing. Bearings are usually installed on the upper and lower shafts of the ball, with small operating torque, and are suitable for high-pressure and large-diameter valves. In order to reduce the operating torque of the ball valve and increase the availability of the seal, oil-sealed ball valves have appeared in recent years. Special lubricating oil is injected between the sealing surfaces to form an oil film, which enhances the sealing and reduces the operating torque. , more suitable for high-pressure and large-diameter ball valves.
3. Resilient ball valve
The ball of the ball valve is resilient. The ball and valve seat sealing ring are both made of metal materials, and the sealing specific pressure is very large. According to the pressure of the medium itself, it cannot meet the sealing requirements, and external force must be applied. This kind of valve is suitable for high temperature and high pressure media. The resilient sphere obtains elasticity by opening an resilient groove at the lower end of the inner wall of the sphere. When closing the channel, use the wedge-shaped head of the valve stem to expand the ball and compress the valve seat to achieve a seal. Loosen the wedge-shaped head before turning the ball, and the ball will return to its original shape, leaving a small gap between the ball and the valve seat, which can reduce friction on the sealing surface and operating torque.
Structural principles
1. The ball valve is not restricted by the installation direction, and the flow direction of the medium can be arbitrary. The fluid resistance is small, and the full-bore ball valve has basically no flow resistance.
2. The ball valve has a simple structure, is relatively small in size, light in weight, and easy to maintain.
3. It is easy to maintain. The ball valve has a simple structure and the sealing ring is generally movable, making it easy to disassemble and replace.
4. It has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be applied from high vacuum to high pressure.
5. It is easy to maintain. The ball valve has a simple structure and the sealing ring is generally movable, making it easy to disassemble and replace.
6. It has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be applied from high vacuum to high pressure.
Advantages
1) It has the lowest flow resistance (actually only equivalent to a section of circular pipe of the same nominal size).
2) Because it will not get stuck during operation (when there is no lubricant), it can be reliably used in corrosive media and low-boiling point liquids.
3) Complete sealing can be achieved within a larger pressure and temperature range.
4) Quick opening and closing can be achieved. The opening and closing time of some structures is only 0.05-0.1s to ensure that it can be used in the automation system of the test bench. When the valve is opened and closed quickly, the operation will be impact-free.
5) The spherical closing piece can be automatically positioned at the boundary position.
