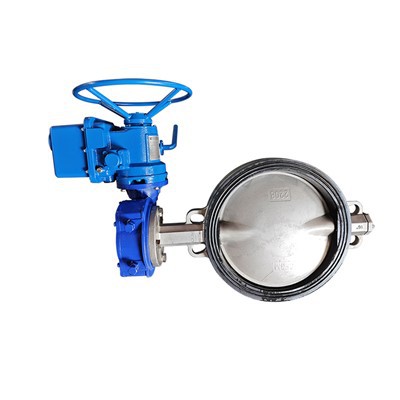

ELECTRIC BUTTERFLY VALVE
PRODUCT OVERVIEW
The electric soft-seal butterfly valve adopts a combination of high-performance rubber sealing ring and precision-cast valve body, and is equipped with an integrated intelligent actuator to achieve precise opening, closing and regulation of the fluid. It is suitable for liquid and gas medium control in industries such as water treatment, HVAC, food, medicine, and chemicals. It supports remote automated operation, has excellent sealing performance, and meets the needs of harsh working conditions.
APPLICATIONS
Municipal engineering
Water supply and drainage network, pump station flow control
Industrial field
Chemical pipeline acid-base medium regulation, cooling water system
HVAC
Central air conditioning hot and cold water circulation, fan coil
CORE ADVANTAGES
Triple sealing design
The edge of the valve plate is covered with EPDM/NBR rubber to elastically compensate for wear;
The valve seat and valve body are integrated to prevent medium leakage;
The shaft end adopts O-ring + packing double seal to prevent leakage more reliably.
Intelligent electric actuator
Supports 4-20mA, 0-10V analog signals and Modbus RTU communication;
Automatic overload protection, real-time feedback of valve opening (0-100% adjustable);
Protection grade IP67, -30C~80C wide temperature operation, adaptable to harsh environments.
Long life and low maintenance
The valve body is made of 304/316 stainless steel, resistant to acid and alkali corrosion;
The rubber sealing ring is FDA certified, non-toxic and resistant to aging;
Maintenance-free design, maintenance cycle is more than 5 years.
TECHNICAL PARAMETERS
Item: Electric butterfly valve
Nominal diameter: DN50-DN600 (customization supported)
Pressure level: PN10/PN16/Class150
Body material: Stainless steel (304/316), carbon steel
Seat material: EPDM, NBR, silicone rubber (optional)
Medium temperature: -20C~+120℃ (high temperature type optional)
Connection mode: Wafer type, flange type (GB/HG standard)
Actuator type: Part turn (90° rotation)
Power supply voltage: AC220V/380V or DC24V
Protection level: IP67 (dustproof and waterproof)
INSTALLATION AND MAINTENANCE
Before installing the valve, clean the impurities in the pipeline to ensure that the valve plate is opened without obstruction; tighten the flange bolts evenly diagonally to avoid deformation of the valve body that affects the seal; the actuator wiring needs to be grounded to avoid signal interference.
Check the seal ring wear regularly (recommended every 2 years); If the valve is not used for a long time, it is necessary to fully open or close the valve to prevent rubber adhesion; The actuator should be lubricated every 3 years.
SELECTION GUIDE
Select sealing material according to the characteristics of the medium:
EPDM: resistant to hot water, weak acid and alkali;
NBR: resistant to oil and petroleum media;
Silicone rubber: resistant to high temperature (≤150℃).
Actuator selection:
For conventional control, select on-off type (on/off signal);
For flow regulation, select regulating type (4-20mA feedback).
