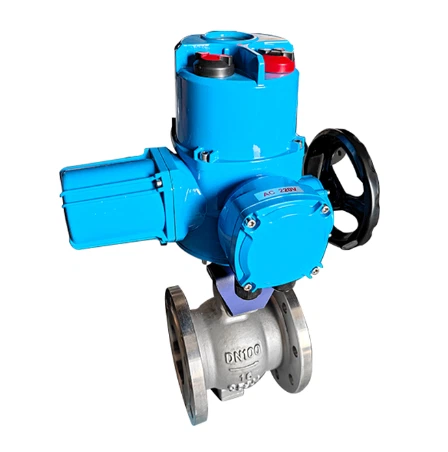

V-type Ball Valve

product-448-452

Characteristics Of Electric V-type Ball Valve

product-482-533

V-type Ball Valve Structure

The ball core of the V-type ball valve has a V-type structure. The valve core is a 1/4 spherical shell with a V-shaped notch. It has large flow capacity, a large adjustable range, shearing force, and can be tightly closed. It is especially suitable for fluids. Conditions where the material is fibrous. Generally, V-type ball valves are single-seal ball valves. Not suitable for two-way use.

product-329-249

product-540-252

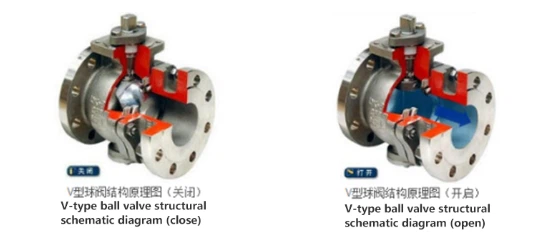

The edge of the valve core is V-type, and there is a V-type opening on the ball. As the ball rotates, the change in the middle opening area can be used to adjust the flow rate, and can cut off the impurities contained in the fluid and close it. It is suitable for the control of pulp, of mortar and viscous fluids.

product-557-194

Working Principle

The electric V-shaped regulating ball valve has a special-shaped V-type cutout. When the valve is closed, the V-type cutout forms a wedge shape with the valve seat and has a shearing effect. The electric V-type ball valve is suitable for controlling fiber-containing slurry, sewage and sticky granular media. It can prevent the sticking phenomenon caused by dirt between the ball and the valve seat. It has a self-clearing function and is a widely used regulating valve.

product-477-411

The electric V-type control ball valve has a special-shaped V-type cutout. When the valve is closed, the V-type cutout forms a wedge shape with the valve seat and has a shearing effect. The electric V-type ball valve is suitable for controlling fiber-containing slurry, sewage and sticky granular media. It can prevent the sticking phenomenon caused by dirt between the ball and the valve seat. It has a self-clearing function and is a widely used control valve.
