Fine Smart Electric Actuator
1. Powerful functions: ·Intelligent, proportional, on-off, and various signal outputs; ·The full travel time is 5 seconds, 10 seconds, 15 seconds, 30 seconds, 60 seconds, etc. for you to choose from; ·The intelligent control module is integrated into the electric device body, without the need for an external positioner.
2. Reliable performance: ·The special copper alloy forged integrated worm gear has high strength, good wear resistance and high rotation accuracy; ·High-quality imported bearings, electrical components and other key components increase the service life; passed the 1500V withstand voltage test, the F-class insulated motor is safe and reliable·IP67 High standard protection level.
3. Easy to use: ·No refueling, no inspection required, waterproof and rust-proof, and can be installed at any angle; ·Adopts single-phase power supply, simple external wiring, and has AC (24, 110, 380) V and DC (1224220) V to choose from;
4. Beautiful appearance: ·Aluminum alloy die-cast shell, fine and smooth: ·The volume and weight are only about 35% of the traditional one
Installation
Indoor installation matters at the installation site
It is a non-explosion-proof product. Do not install it in a room with explosive gases. Please reserve space for incoming wires and manual operation.
Precautions for outdoor installation
Please install a protective cover and make sure the wiring cover is tightly closed after wiring for safety precautions Note: Direct sunlight will cause high temperatures inside the machine and accelerate the aging of components. Rainwater will accelerate the aging of seals, causing water seepage and damaging the machine.

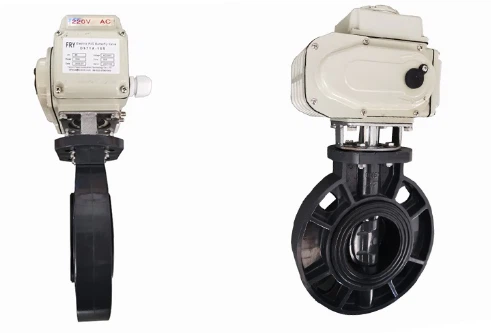

Electric Upvc Butterfly Valve
Product Details
Small fluid resistance
Good sealing can be achieved at low pressure and the regulation performance is good. When fully open, the effective circulation area of the valve seat channel is larger and the fluid resistance is smaller.
Anti-corrosion, weather-resistant, crack-proof, flame -retardant
UPVC butterfly valve has excellent chemical corrosion resistance, and its flame retardant property is self-extinguishing. Excellent aging resistance and UV resistance, the normal service life is greatly extended compared with other pipeline systems.
Quick opening and closing
The opening and closing is convenient, quick and labor-saving; the structure is simple and the weight is light, and it is suitable for large-diameter valves. The opening and closing torque is small, because the butterfly plates on both sides of the rotating shaft are basically equally affected by the medium; and the direction of the torque is opposite, so opening and closing is less labor-intensive.
Product Features
The sealing surface material is generally made of rubber or plastic, so the low-pressure sealing performance is good; the sealing performance of the valve is not affected by temperature changes. The valve seat is integrally vulcanized with the valve body, which has good integration and facilitates on-site maintenance.
Basic Parameters
1.Wide temperature range: -40~+950C.
2. It has excellent strength and toughness.
3. It has excellent chemical resistance.
4. The flame retardant performance is self-extinguishing.
5. Low thermal conductivity, about 1/200 of steel
6. The content of heavy ions in the medium reaches the standard of ultrapure water.
7. Sanitary indicators meet the requirements of national sanitary standards.
8. Light weight, convenient installation and long life.
More Product Display
