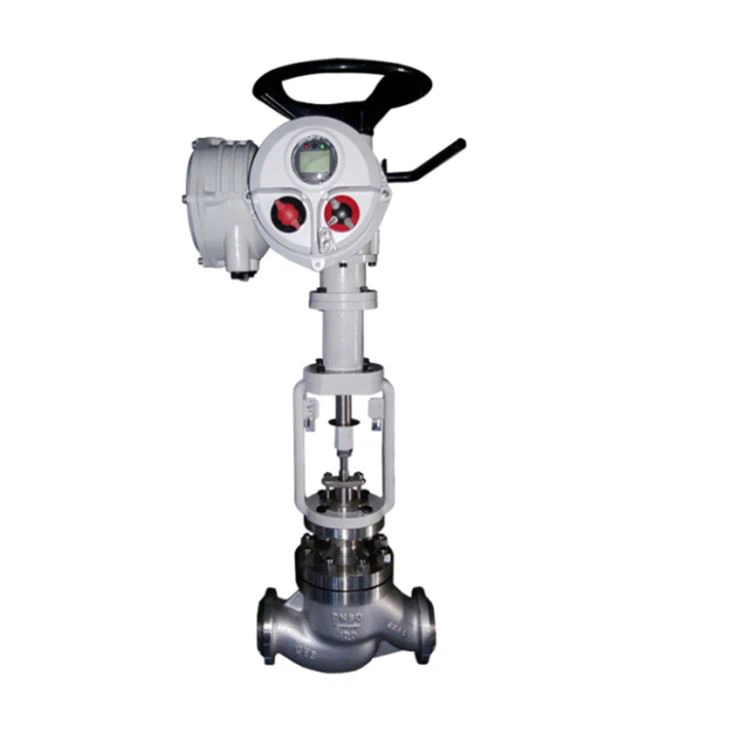

The intelligent electric control valve is a balanced electric control valve. By adopting a smart integrated electric actuator, it accepts analog 4-20 mA or 1-5 V•DC standard signal, which converts the current signal into a corresponding linear displacement, and then automatically controls the opening of the electric control valve, thereby it realizes continuous adjustment of process parameters such as pressure, flow, temperature and liquid level of fluid in the pipeline. The intelligent electric control valve has a compact structure, light weight, good stability and high protection level. Intelligent electric control valves are widely used in automatic control systems such as large thermal power plants, chemical plants, water treatment and sewage treatment, natural gas fields, and steel plants. As the world's leading manufacturer of actuators, this electric control valve has a worldwide reputation for its durable products. With decades of experience in installation and use in a variety of environments,this control valve has developed a highly reliable design.
Valve Body Parameters
Nominal Size (DN) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Valve Seat Diameter (dn) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Rated Flow Coefficient (KV) | Single Seat | 6.9 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 630 | 875 | 1250 |
Sleeve | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 360 | 570 | 850 | 1180 | |
Allowable Pressure (MPa) | Single Seat | 3.8 | 3.2 | 3.0 | 2.0 | 1.8 | 1.5 | 1.4 | 1.0 | 0,7 | 0.6 | 0.5 | 0.3 | 0.1 |
Sleeve | 6.4 | 6.4 | 5.2 | 5.2 | 4.6 | 4.6 | 3.7 | 3.7 | 3.5 | 3.1 | 3.1 | 2.6 | 2.2 | |
Nominal Pressure (MPa) | 1.6, 2.5, 4.0, 6.4, 10.0, 16.0, 25.0 | |||||||||||||
Rated travel (mm) | 16 | 25 | 40 | 60 | 100 | |||||||||
Bonnet | Standard Form (-17～+250℃), High-temperature Form (+250～+450℃), Low-temperature Form (-40～-196℃), Bellows Seal Form(-40～+350℃) | |||||||||||||
Bonnet type | Bolt Compression | |||||||||||||
Sealing gasket | V-type PTFE Filler, V-type Flexible Graphite Filler | |||||||||||||
Body Material | Carbon Steel(WCB, WCC), Stainless Steel(CF8, CF8M, CF3, CF3M, Duplex Stainless Steel 2520) | |||||||||||||
Trim Parameters
Structure | Single seat plunger type spool, Sleeve type spool |
Flow Characteristics | Linear, Equal Percentage |
Trim Material | Stainless Steel (304, 316, 316L) |
The matching actuator parameters are as follows:
Actuator Models | Imported (Rotork, Siemens, AUMA, Westbosch) and other customer-designated brands |
Main Technical Parameters | Power Supply Voltage: AC 220V, AC 380V; Special order DC 24V; (others) |
Input signal: 4-20mA or 1-5V•DC, Output signal: 4-20mA•DC; Special custom RS485 communication interface | |
Protection Level: Quite IP65, Explosion-proof Mark: ExdIIBT4 (optional BT6, CT4, CT6), Hand Function: Handle | |
Ambient Temperature: -25～+70℃, Ambient Temperature: ≤95% |
Performance Index
Electric Actuator Main Technical data
Nominal pressure: 1.6, 2.5, 4.0, 6.4 MPa
Valve material: cast iron, cast steel, cast stainless
Inherent flow characteristic: line, equal percent
Mode of Action: electric open(K), electric close(B)
Temperature range: -20~250°C(normal temperature),-20~425°C(medium temperature)
Input single: 4~20mA
Voltage: 220V50Hz or 380V
Actuator rated travel: See sheet 1
Basic error: 1%, 1.5%
Dead zone: 0.5%~3%
Return difference: 1.5%
Control accuracy: ±1%
Protective degree: IEC145IP67
Allowing leakage volum: ZRLP meet ANSI B16.106 IV degree, ZRLN meet ANSI B16.106 II degree
Application temperature: Electric regulating valve -20~+80°C
Using situation humidity: Electric regulating valve ≦95%
Surrounding gas: Gas
Outline dimension & connection
Nominal diameter DN | L | H1 | H2 | ||||||
ZRLP | ZRLN | ||||||||
PN 1.6 | PN 2.5/4.0 | PN 6.4 | Normal type | Hot piece type | Normal type | Hot piece type | ZRLP | ZRLN | |
20 | 180 | 180 | 190 | 753 | 904 | / | / | 65 | / |
25 | 185 | 190 | 205 | 765 | 916 | 770 | 920 | 112 | 117 |
32 | 200 | 210 | 220 | 771 | 922 | 773 | 923 | 118 | 120 |
40 | 220 | 230 | 240 | 783 | 934 | 793 | 943 | 129 | 139 |
50 | 250 | 255 | 265 | 798 | 949 | 798 | 948 | 144 | 144 |
65 | 275 | 285 | 295 | 889 | 1049 | 899 | 1059 | 178 | 188 |
80 | 305 | 310 | 325 | 892 | 1052 | 909 | 1069 | 191 | 208 |
10 | 350 | 355 | 370 | 896 | 1056 | 921 | 1081 | 195 | 220 |
125 | 410 | 425 | 440 | 1000 | 1162 | 1050 | 1187 | 245 | 270 |
150 | 450 | 460 | 475 | 1080 | 1215 | 1115 | 1298 | 255 | 280 |
200 | 550 | 560 | 570 | 1150 | 1260 | 1210 | 1339 | 290 | 320 |
250 | 640 | 655 | 670 | 1195 | 1315 | 1256 | 1468 | 380 | 440 |
300 | 720 | 735 | 750 | 1265 | 1385 | 1315 | 1527 | 435 | 502 |
