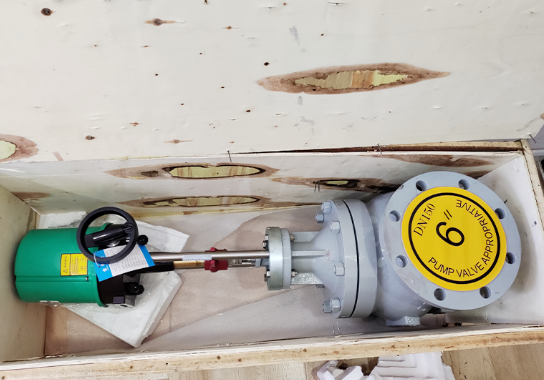

Electric control valve
Actuator Parameter
Stroke: 0-50mm; 0-60mm; 0-100mm;
Power supply: single-phase AC 110V 50Hz/60Hz
Single-phase AC 220V 50Hz/60Hz
Three-phase AC 380V 50Hz/60Hz DC 24V
Input signal: current signal (4~20mA), input impedance 250Ω
Voltage signal (0-10V), input impedance>50KΩ
Output signal: current signal (4~20mA), load impedance maximum 750Ω
Voltage signal (0-10V), load impedance>10KΩ
Communication interface: RS485 modbus protocol;
Resolution: Minimum 1/1,000, circuit A/D converter 12 bits
Control accuracy: ±0.5% - ±1.5% (may vary depending on installation conditions, expressed as a percentage of rated travel)
Backlash adjustment: 0.1% - 5.0%
Ambient temperature: -10C -60C (special instructions are required for temperatures below -20C- -45C)
Ambient humidity: maximum 90%RH (non-condensing)
Insulation strength: 1500V AC 1 minute (input to output, power to ground)
Insulation resistance:
a) ≥20MΩ between input terminal and housing.
b) ≥50MΩ between input terminal and power terminal.
c) ≥50MΩ between power terminal and housing
Protection level: IP65; IP67;
Cable interface: 2- M18*1.5;
Vibration or shock: (X, Y, Z) 10g, 0.2～34Hz, 30 minutes
control module
valve stem and actuator push rod
The valve stem is connected to the actuator push rod. As can be seen from the figure, the valve stem and the actuator are a [flexible] connection structure, the purpose of which is to adapt the actuator thrust to the closing force required by the control valve, compensate for the thermal expansion of the control valve stem caused by temperature, and ensure the "thrust and stroke" valve position end limit closure.
Sleeve guided control valve
The sleeve-guided control valve is a control valve with large capacity, wide adjustable range, high flow characteristic accuracy, excellent dynamic stability, and a structural design that improves the smooth flow of fluid. It is suitable for control valves under harsh working conditions.
Material
Packing temperature -pressure curve
Certifications
