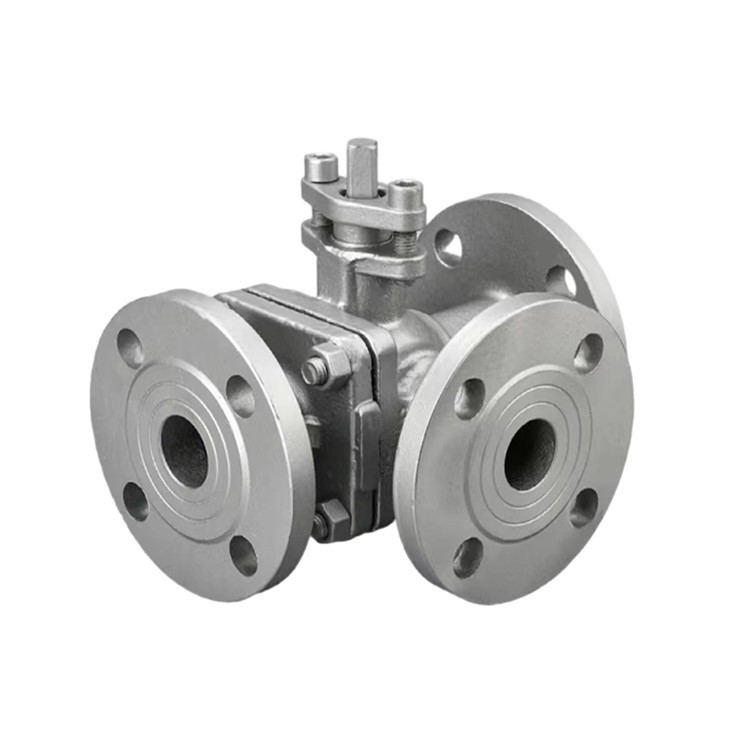

ASME Class 150 3-Way Full Port, Flanged End Ball Valve with Direct Mount Actuation Design
Description
The series is a three-way, flanged end ball valve with ISO 5211 compliant direct mount actuation pad. The E60 is available in sizes ranging from ¼" to 4" with ASME Class 150 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" – 4"
• CF8M and WCB Bodies/316SS Trim
• Built-in ISO 5211 Mounting Pad for Easy Automation
• Anti-Static Devices for Ball-Stem-Body
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
• TA-LUFT Design/Approved Live Loaded Stem Packing
• Locking in Every 90° Increments
• L-Port and T-Port Configurations Available
Standards
• Design: ASME B16.34, API 608
• Flanged Ends: ASME B16.5
• Wall Thickness: ASME B16.34
• Inspection and Testing: API 598.
Materials of Construction
Dimensions
ASME Class 300 3-Way Full Port, Flanged End Ball Valve with Direct Mount Actuation Design
Description
The series is a three-way, flanged end ball valve with ISO 5211 compliant direct mount actuation pad. The E60 is available in sizes ranging from ¼" to 4" with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" – 4"
• CF8M and WCB Bodies/316SS Trim
• Built-in ISO 5211 Mounting Pad for Easy Automation
• Anti-Static Devices for Ball-Stem-Body
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
• TA-LUFT Design/Approved Live Loaded Stem Packing
• Locking in Every 90° Increments
• L-Port and T-Port Configurations Available
Standards
• Design: ASME B16.34, API 608
• Flanged Ends: ASME B16.5
• Wall Thickness: ASME B16.34
• Inspection and Testing: API 598
Materials of Construction
Dimensions
1000 WOG 3-Way Full Port NPT Ball Valve with Direct Mount Actuation Design
Description
The series is a three-way, full port ball valve with NPT ends and ISO 5211 compliant direct mount actuation pad. The E70 is rated to 1000 WOG and is available in sizes ranging from ¼" to 1-½". Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" – 1-½"
• CF8M and WCB Bodies/316SS Trim
• Built-in ISO 5211 Mounting Pad for Easy Automation
• Anti-Static Devices for Ball-Stem-Body
• Blow-out Proof Stem
• TA-LUFT Design/Approved Live Loaded Stem Packing
• Positive Position Location at 90° Increments
• Locking in Every 90° Increments
• L-Port and T-Port Configurations Available
Standards
• Design: ASME B16.34, MSS SP-110
• Wall Thickness: ASME B16.34 Class 400
• Pipe Thread: ASME B1.20.1
• Inspection and Testing: API 598
Materials of Construction
Dimensions
