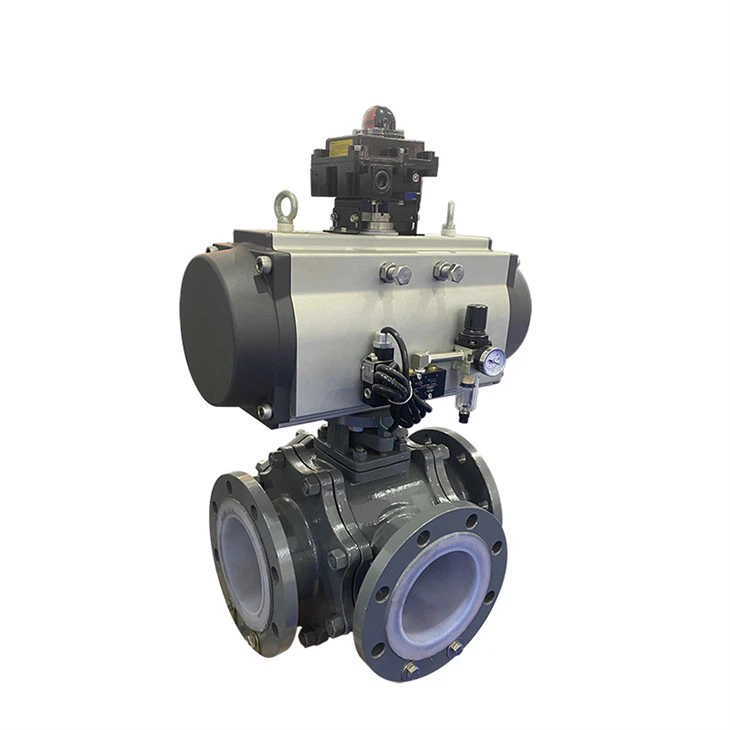

PNEUMATIC THREE-WAY BALL VALVE
PRODUCT ADVANTAGES
Multi-flow control L-port/T-port flow channel:
L-port realizes two-way switching of media, T-port realizes diversion/merging, and one valve for multiple uses simplifies pipeline layout.
No dead angle design: The ball and the valve seat are precisely matched, the flow channel is smooth and has no retention, avoiding cross contamination
Efficient and intelligent drive
The pneumatic actuator responds quickly in 0.5 seconds, supports 4-20mA/bus signal control, and accurately adjusts flow distribution.
Full working condition adaptation
Pressure resistance PN16~PN100, temperature resistance -40C~+200C, compatible with corrosive media, high viscosity fluids and ultrapure water.
PRODUCT STRUCTURE
Material and channel design:
The valve body is usually cast in stainless steel, carbon steel or special alloy, which is corrosion-resistant and has strong pressure-bearing capacity. The three-way structure contains three fluid ports (such as T-port or L-port layout):
T-port valve body: The three ports are arranged at right angles to achieve multi-flow switching (such as inlet diversion or outlet confluence).
L-port valve body: The three ports are arranged in an L shape, mainly used for flow switching (such as two inlets and one outlet or one inlet and two outlets).
Flow channel optimization: The inner cavity is designed to be smooth to reduce pressure loss and adapt to high flow conditions.
Ball structure
Multi-channel ball core:
The surface of the ball has channels with specific angles (such as 90° or 120°), and the flow direction is changed by rotation. For example:
T-port ball core: It can be switched to "three-way full-pass", "T-port diversion" or "L-port switching" mode.
L-port ball core: It is limited to a specific flow direction combination (such as single inlet and double outlet).
Surface treatment: The ball is often plated with hard chrome or sprayed with a ceramic layer to enhance wear resistance and sealing.
TECHNICAL PARAMETERS
Nominal diameter DN15~DN300 (1/2"~12")
Pressure level PN16~PN100 (Class150~600)
Valve body material 304/316L stainless steel, carbon steel lined PTFE
Connection method Flange (RF/RTJ), thread (NPT/BSP)
Flow mode L port (two-position), T port (three-position)
Applicable media Acid/alkali liquid, steam, oil, slurry, gas Actuator type
Double acting/spring return (single acting)
Protection level IP67 (optional explosion-proof Ex d IIB T4)
SOLVE INDUSTRY ISSUES
1. Chemical multi-reaction control
Challenge: Frequent switching of multiple raw material pipelines, prone to leakage and low efficiency.
Solution: L-port three-way valve + pneumatic batch control, single valve replaces multiple valves, switching efficiency increased by 60%.
2. Water treatment dosing system
Challenge: The need to accurately distribute the reagent to multiple branches, the accuracy of traditional valves is insufficient.
Solution: T-port diverter valve + proportional adjustment positioner, flow error <5%.
3. Food production line cleaning circuit
Challenge: CIP/SIP cleaning requires two-way switching, and sanitary dead corners are prone to bacteria.
Solution: 316L mirror polishing + full-diameter design, supporting 180° residue-free cleaning.
APPLICATIONS
Laboratory precision instruments
Challenges: Unstable micro-flow control, and traditional valves are too large.
Solution: DN10 micro ball valve + 0-90° stepless adjustment, flow fluctuation <2%, suitable for laboratory bench integration.
Pharmaceutical filling equipment
Challenge: Need to meet GMP cleanliness requirements and avoid media residue.
Solution: 316L mirror polishing (Ra≤0.4μm) + no dead angle design.
Automated production line
Challenge: High frequency of opening and closing results in short seal life.
Solution: Strengthened PTFE valve seat + self-lubricating valve stem, opening and closing life > 100,000 times.
