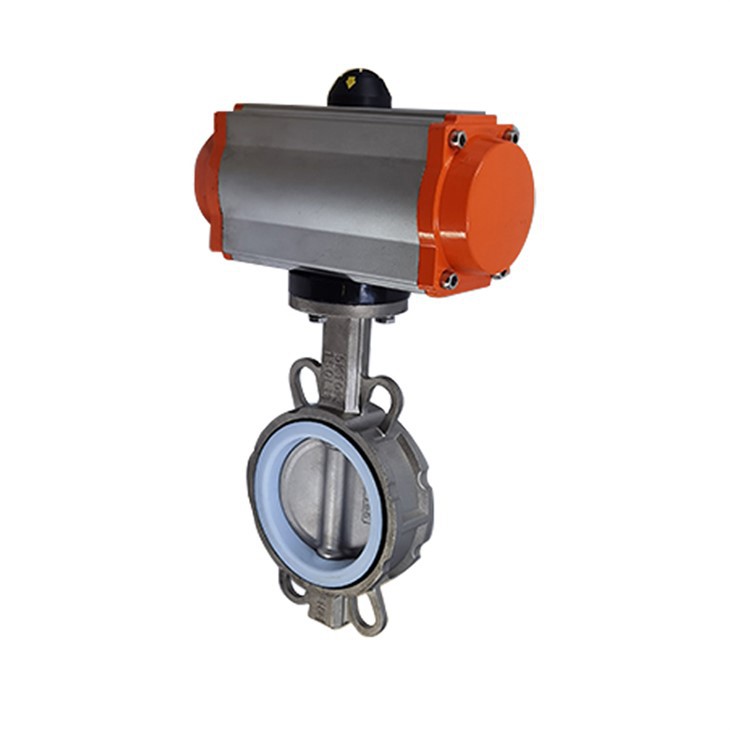

Pneumatic soft seal Wafer butterfly valve
Product features
Pneumatic butterfly valve is a specially designed and carefully manufactured product based on the introduction of advanced foreign technology. The butterfly valve is equipped with a stroke limit switch, a solenoid valve, a triple piece and a 0.4-0.7MPa air source to achieve switching operations, and sends two pairs of passive contact signals to indicate the valve's switching. When using intelligent control and positioning, it is matched with a domestic electric valve positioner and inputs a 4-20mADC signal and a 0.4-0.7MPa air source to realize intelligent control and adjust parameters such as pressure, flow, temperature, and liquid level. It is powered by compressed air, and the valve stem drives the valve core to rotate 90°C in the valve body, which can achieve fully open-fully closed actions. This product is divided into metal seal and soft seal according to its sealing performance. It has the advantages of compact structure, small size, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability. It can be widely used in industrial automatic control systems such as petroleum, chemical industry, light industry, pharmaceuticals, papermaking, automobiles, etc. for remote centralized control or local control.
Nominal diameter: 15~1000mm
Nominal pressure: PN1.6MPa
Connection form: flange type press JB78-59 JB79-59
Materials: WCB, HT200 ZG25I ZG1Cr18Ni9Ti, ZG0Cr18Ni12Mo2Ti, CF8, CF8M lined with tetrafluoroethylene
Temperature range: normal temperature -20℃~+200℃
Medium temperature +200℃~+450℃
Filling: V-shaped PTFE packing, impregnated PTFE packing, asbestos braided packing, flexible graphite.
Valve core type: valve plate
Flow characteristics: linearity or equal percentage continuity
Material: 1 Cr18Ni9Ti 0Cr18Ni12Mo2Ti Seat material: polytetrafluoroethylene (PTFE), rubber, metal seat Valve stem material: stainless steel, lined with PTFE, adjustable ratio: 100:1
Exquisite structure and beautiful appearance
Our advantages
Technical advantages
Innovative design Beautiful and durable Reasonable structure Quick opening and closing
Power advantage

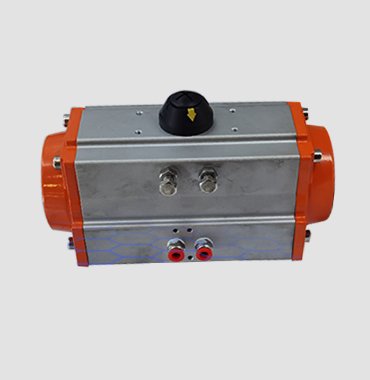

AT actuator Geared double piston Large output torque Small friction coefficient
Cylinder advantages
Extruded aluminum alloy and hard anodized, with hard surface texture and strong wear resistance
Product advantages
PTFE seal Reliable and durable Acid and alkali resistant Smooth and reliable
Product configuration
