FRY series electric actuator are used to control 0-90° rotation valve and other similar products such as butterfly valve, ball valve throttle plug valve, louver valve. etc. It uses AC24V 110V 220V 380V and DC24V voltage to be the driving source.4-20Ma current signal or 0-10V voltage signal to the controlling signal driving. the valve to the required position.so that realized the automation control. they can be widely apply to petroleum. chemical industry electric power, metallurgy, pharmaceutical papermaking, energy water treatment weight elegant appearance, unique and compact structure, rapid in opening and closing easy installation, small operation torque easy operating digital display for valve location no need in maintenance and safe using and convenient and many other advantage.
Performance Parameter Table
Performance Model
| 05 Type | 10 Type | 16 Type | 25 Type | 50 Type | 100 Type | 200 Type |
Power | AC220V 50/60Hz, if (AC24V, AC110V, AC380V, DC24V, DC220V) and other voltages are required, please specify when ordering. | ||||||
Torque | 50NM | 100NM | 160NM | 250NM | 500NM | 1000NM | 2000NM |
Time(s) | 15, 30 | 15/30/60 | 15/30/60 | 15/30/60 | 15/30/60 | 60 | 60, 100 |
Electric machine | 15W | 23W | 23W | 50W | 90W | 100W | 100W |
Working current | 0.25A | 0.6A | 0.7A | 0.8A | 1.2A | 1.3A | 1.3A |
Weight | 2.5KG | 3.7KG | 3.7KG | 6.8KG | 8.0KG | 12KG | 12KG |
Rotation angle | 0°~90° | ||||||
Ambient temperature | -30℃~+60℃ | ||||||
Pressure-withstanding valve | 1500AC/1minute | ||||||
Level of protection | IP67 | ||||||
Position-limiting | Electrical machinery | ||||||
Manually operating | With handle | ||||||
Installation angle | Any angle | ||||||
※Notes:Time: It means the time needed in operating stroke from 0° to 90° ;Rotating angle: means the adjustable range of stroke.
Optional function
①Heating and dehydrating device
②Over-torque protector
③0~10V, 1~5V,4~20mA intelligent regulated type
④ Integration (with on-site operation)
Product Features
 | Valve position indicating mechanism to ensure accurate valve opening indication |
 | The high quality servo controller uses imported industrial grade electronic components. The circuit board in resin plastic package provides better impact and moisture resistance. The unique electronic brake function allows the actuator to generate no surge when positioned. |
 | Adjustable machine limiter |
 | Ingenious and beautiful with die-cast aluminum alloy casing |
Model Table
Model | FRY-05 | FRY-10 | FRY-16 | FRY-25 | FRY-50 | FRY-100 | FRY-200 |
Torque (NM) | 50 | 100 | 160 | 250 | 500 | 1000 | 2000 |

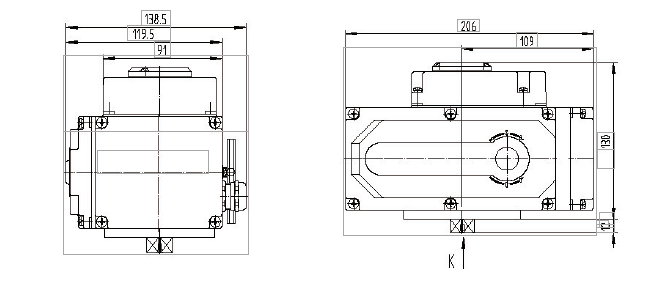

FRY-05 Outline Dimensions
FRY-10/FRY-16 Outline Dimensions
FRY-25/FRY-50 Outline Dimensions
FRY-100/FRY-200 Outline Dimensions
