Description

Multi-turn intelligent integration electric actuator can be used for control various of valves, like gate valve, globe valve, high temperature and high pressure valve, desuperheating water valve and other rotate valves with 0-360° rotation, and the torque is 60～6000Nm. Explosion-proof Grade : IP67.

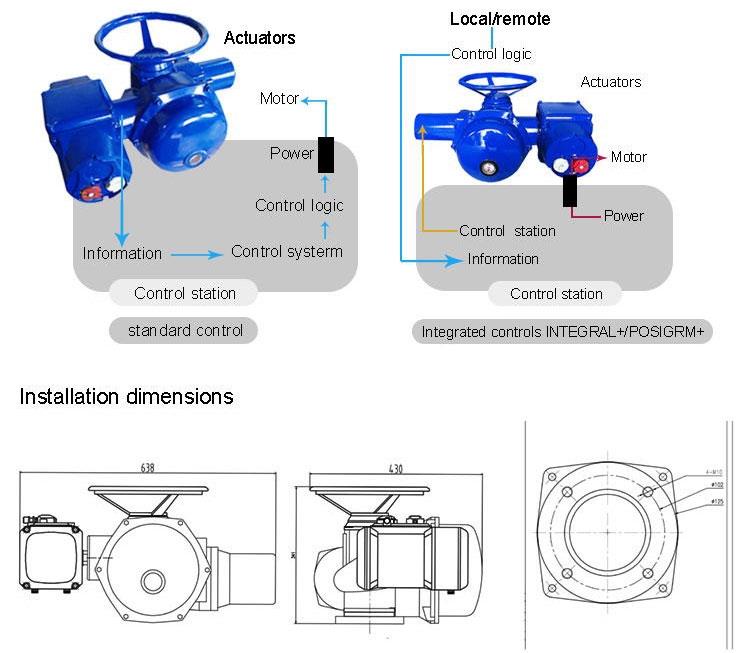

Model table of ST series multi-turn actuator

3-phase power 380V, 50Hz

Max Torque Nm	Operating Torque Nm	Model of Actuator	Rotate Speed rpm	Time S/r	Flange (ISO)	S4: Dynamo Working System 50%
Max Torque Nm	Operating Torque Nm	Model of Actuator	Rotate Speed rpm	Time S/r	Flange (ISO)	Power KW	Rotate Speed rpm	Rated Current A	Start-up Current A
60	30	ST6	11 16 23 30 46	5.42 3.75 2.61 2.00 1.30	F10	0.10 0.10 0.37 0.37 0.37 0.37 0.	750 750 1500 1500 1500	0.80 0.80 1.10 1.10 1.10	1.60 1.60 5.00 5.00 5.00
140	70	ST14	11 16 23 61	5.42 3.75 2.67 0.98	F10	0.37 0.37 0.50 0.90	1500 1500 1500 1500 1500	1.10 1.10 1.50 2.70	5.00 5.00 5.00 14.0
300	150	ST30	16 23 61	3.75 2.67 0.98	F14	0.90 1.50 2.20	1500 1500 1500	2.70 3.70 5.10	14.0 21.0 52.0
700	350	ST70	16 23 61	3.75 2.67 0.98	F16	2.20 3.00 4.00	1500 1500 1500	5.10 7.20 9.10	27.0 37.0 52.0

Model table of ST series multi-turn actuator

Single phase power 220v, 50Hz

Max Torque Nm	Operating Torque Nm	Model of Actuator	Rotate Speed rpm	Time S/r	Flange (ISO)	S4: Dynamo Working System 50%
Max Torque Nm	Operating Torque Nm	Model of Actuator	Rotate Speed rpm	Time S/r	Flange (ISO)	Power KW	Rotate Speed rpm	Rated Current A	Start-up Current A
50 60 60	40 40 40	SRA6	26 17 10	2.31 3.53 6.00	F10	0.20 0.20 0.20 0.37 0.	1500 1500 1500	2.50 2.50 1.20	3.50 3.50 1.70
130	80	SRC	9	6.67	F14	0.20	1500	2.50	3.50
60 50 60 55 40	30 30 30 30 30	ST6	11 16 23 30 46	5.42 3.75 2.61 2.00 1.30	F10	0.10 0.10 0.40 0.40 0.40	750 750 1500 1500 1500	2.50 2.50 4.00 4.00 4.00	3.00 3.00 6.30 6.30 6.30
140 140 110 60	70 70 70 60	ST14	11 16 23 61	5.42 3.75 2.67 0.98	F10	0.30 0.30 0.30 0.30	1500 1500 1500 1500	3.50 3.50 3.50 3.50	15.0 15.0 15.0 15.0
