EZ series product overview

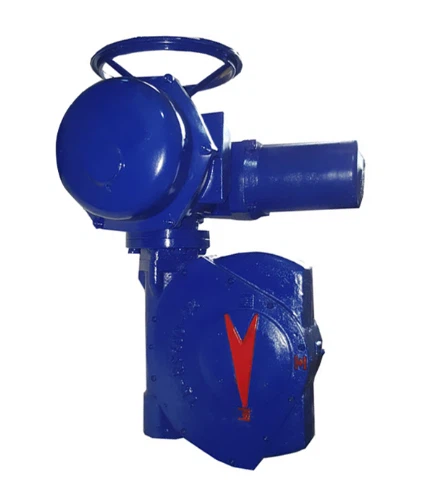

All-weather quarter-turn actuator
· Suitable for all quarter-turn valves: torque range 45 to 10.000nm
· IP67/NEMA 4
· Operation type >On-off type >Modulating type
· Control type >Switch Control
- EZ SWITCH for switch type applications >Integrated control
- EZ LOGIC for on-off or modulating applications
FIRSTBC Characteristics
The technical and economical nature of the FIRST BC actuator dictates its suitability for:
>Suitable environmental conditions (IP67/NEMA 4 and non-extreme temperature)
>Suitable operating conditions (limited operational service) Perfectly respond to customer needs, simple but durable
EZ actuators have the following features:
>Easy to install (compact, EZ Models below SWITCH EZ60 are pre-wired, EZ LOGIC is non-intrusive debugging),
>Easy to use, EZ LOGIC model local indication signal with LED display light (integrated control),
> Ease of maintenance (no maintenance required)
Products
EZSWITCH on-off type application
This configuration requires the user to design the control unit, which is typically located in a remote control cabinet. All feedback signals from the actuator (travel limit, torque limit, motor overheating, position feedback signal, etc.) are processed through the user's control logic. The motor reversing starter is also located in the remote control cabinet.
For the setting of travel limit, the patented cam group system is adopted, and the cam position can be set quickly with only one screwdriver. Each cam can be set independently. Once set, the cam automatically locks in the set position and is not affected by vibration.
EZLOGIC on-off type and modulating type applications
EZ series actuators can be equipped with integrated control functions, which support extended control functions and are more convenient for customers to use Simple debugging: Relying on the buttons and menus on the panel, non-intrusive debugging can be realized. More compact: Improved electronic design. Local commands have 4 buttons, 7-segment digital display, and the position is displayed as a percentage EZLOGIC actuators for on-off or modulating applications are available for precise positioning operations with position feedback (accuracy higher than 2%).
Technical specifications
General Specifications
EZSWITCH Specifications
EZLOGIC Specifications
