Electric actuator
Classification and use ofSD products
SD non-intrusive intelligent electric actuator is the execution unit in industrial automationinstrument, it receives from the regulator PLC, DCS control signal from the computer, suchas thecompletion of automatic adjustment, is indispensable to automatic control system for mainequipment. lt is widely used in power station, metallurgy, petroleum, chemical mine,light industry.pharmacy. gas power. building materials. transportation and city subway.water supply, sewace treatment and other industries
Electric actuators are classtfied according to output;

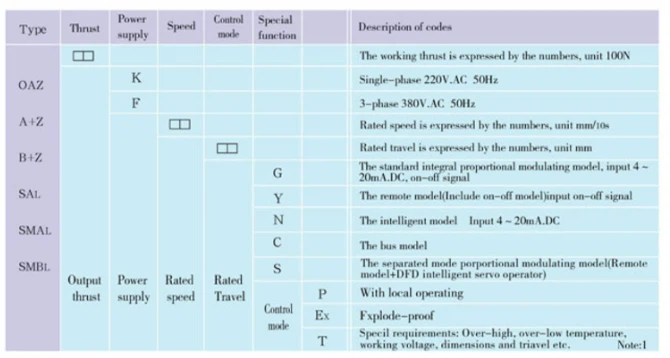

1. The linear-turn electric actuator types and specifications instruction
SD series Linear-turn electric actuator tyator types, specifications anal Parameters
|
type |
Rated load |
Rated travel |
Rated speed |
Stem connection hole |
法Flange connection |
Flange diameter |
Connection Hole |
A |
B |
K |
C |
Hmax |
|
|
Single phase 220V |
Three-phase 380V |
||||||||||||
|
A+Z64/K0610 |
A+Z64/F0610 |
6400 |
10 |
0.6 |
MBX1.25 |
φ80 |
|
2孔φ11 |
490 |
407 |
20 |
280 |
116 |
|
A+Z64/K1210 |
A+Z64/F1210 |
1.2 |
|||||||||||
|
A+Z64/K0616 |
A+Z64/F0616 |
16 |
0.6 |
||||||||||
|
A+Z64/K1216 |
A+Z64/F1216 |
1.2 |
|||||||||||
|
A+Z64/K1816 |
A+Z64/F1816 |
1.8 |
|||||||||||
|
A+Z64/K0625 |
A+Z64/F0625 |
25 |
0.6 |
M12X1.25 |
φ105 |
|
4孔φ11 |
560 |
460 |
25 |
280 |
171 |
|
|
A+Z64/K1225 |
A+Z64/F1225 |
1.2 |
|||||||||||
|
A+Z64/K1825 |
A+Z64/F1825 |
1.8 |
|||||||||||
|
A+Z64/K0640 |
A+Z64/F0640 |
40 |
0.6 |
||||||||||
|
A+Z64/K1240 |
A+Z64/F1240 |
1.2 |
601 |
460 |
30 |
280 |
|||||||
|
A+Z64/K1840 |
A+Z64/F1840 |
1.8 |
|||||||||||
|
A+Z64/K1260 |
A+Z64/F1260 |
60 |
0.6 |
M16X1.5 |
φ118 |
|
570 |
480 |
38 |
193 |
|||
|
A+Z64/K1860 |
A+Z64/F1860 |
0.6 |
|||||||||||
|
A+Z100/K0616 |
A+Z100/F0616 |
10000 |
16 |
0.6 |
184 |
||||||||
|
A+Z100/K0625 |
A+Z100/F0625 |
25 |
0.6 |
||||||||||
|
A+Z100/K1225 |
A+Z100/F1225 |
1.2 |
|||||||||||
|
A+Z100/K1825 |
A+Z100/F1825 |
1.8 |
193 |
||||||||||
|
A+Z100/K0640 |
A+Z100/F0640 |
0.6 |
|||||||||||
|
A+Z100/K1240 |
A+Z100/F1240 |
40 |
1.2 |
601 |
480 |
280 |
|||||||
|
A+Z100/K1840 |
A+Z100/F1840 |
1.8 |
|||||||||||
|
A+Z100/K1260 |
A+Z100/F1260 |
60 |
1.2 |
||||||||||
|
A+Z100/K1860 |
A+Z100/F1860 |
1.8 |
|||||||||||
|
A+Z160/K1225 |
A+Z160/F1225 |
16000 |
25 |
1.2 |
M20X1.5 |
φ136 |
|
6孔φ18 |
680 |
480 |
259 |
||
|
A+Z160/K1240 |
A+Z160/F1240 |
40 |
1.2 |
||||||||||
|
A+Z160/K1840 |
A+Z160/F1840 |
1.8 |
280 |
||||||||||
|
A+Z160/K1260 |
A+Z160/F1260 |
60 |
1.2 |
||||||||||
|
A+Z160/K1860 |
A+Z160/F1860 |
1.8 |
|
180 |
|||||||||
|
A+Z160/K1200 |
A+Z160/F1200 |
100 |
1.2 |
|
|||||||||
|
A+Z160K/1800 |
A+Z160F1800 |
1.8 |
720 |
|
|||||||||
|
B+Z250/K1240 |
B+Z250/F1240 |
25000 |
40 |
1.2 |
M27X2 |
φ135 |
|
6孔φ18 |
879 |
630 |
38 |
380 |
260.5 |
|
B+Z250/K1840 |
B+Z250/F1840 |
1.8 |
|||||||||||
|
B+Z250/K1260 |
B+Z250/F1260 |
60 |
1.2 |
||||||||||
|
B+Z250/K1860 |
B+Z250/F1860 |
1.8 |
|||||||||||
|
B+Z250/K1200 |
B+Z250/F1200 |
100 |
1.2 |
||||||||||
|
B+Z250/K1800 |
B+Z250/F1800 |
1.8 |
|||||||||||
