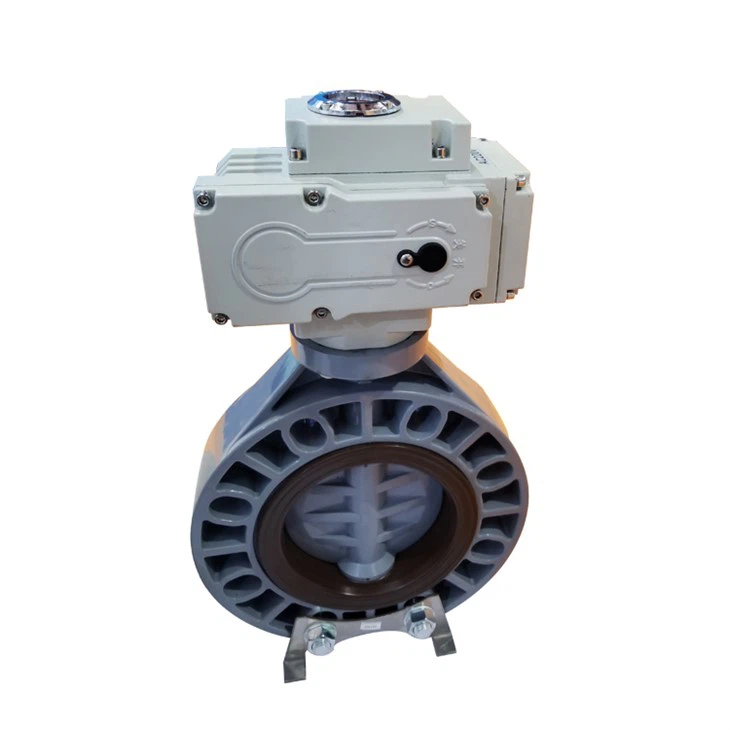

4 Inch UPVC Electric Actuator Butterfly Valve

4 Inch UPVC Electric Actuator Butterfly Valve
Details:
This electric PVC wafer type butterfly valve with rubber lining can be quickly assembled using special tools. It has the advantages of tight structure, wear resistance, easy disassembly, convenient repair, and simple and easy maintenance. The valve body material is hygienic and non-toxic, has strong corrosion resistance, is light in weight, and has a wide range of applications, such as: pure water and drinking water piping systems, drainage and sewage piping systems, salt water and seawater piping systems, acid-base and chemical solutions systems and many other industries.
Send Inquiry
Description
Send Inquiry

Fine Smart Electric Actuator

product-444-457

1. Powerful functions: ·Intelligent, proportional, on-off, and various signal outputs; ·The full travel time is 5 seconds, 10 seconds, 15 seconds, 30 seconds, 60 seconds, etc. for you to choose from; ·The intelligent control module is integrated into the electric device body, without the need for an external positioner.



2. Reliable performance: ·The special copper alloy forged integrated worm gear has high strength, good wear resistance and high rotation accuracy; ·High-quality imported bearings, electrical components and other key components increase the service life; passed the 1500V withstand voltage test, the F-class insulated motor is safe and reliable·IP67 High standard protection level.



3. Easy to use: ·No refueling, no inspection required, waterproof and rust-proof, and can be installed at any angle; ·Adopts single-phase power supply, simple external wiring, and has AC (24, 110, 380) V and DC (1224220) V to choose from;



4. Beautiful appearance: ·Aluminum alloy die-cast shell, fine and smooth: ·The volume and weight are only about 35% of the traditional one



Installation

Indoor installation matters at the installation site

It is a non-explosion-proof product. Do not install it in a room with explosive gases. Please reserve space for incoming wires and manual operation.



Precautions for outdoor installation

Please install a protective cover and make sure the wiring cover is tightly closed after wiring for safety precautions Note: Direct sunlight will cause high temperatures inside the machine and accelerate the aging of components. Rainwater will accelerate the aging of seals, causing water seepage and damaging the machine.



Electric Upvc Butterfly Valve

product-536-275



Product Details

product-225-193

Small fluid resistance

Good sealing can be achieved at low pressure and the regulation performance is good. When fully open, the effective circulation area of the valve seat channel is larger and the fluid resistance is smaller.

product-225-198



Anti-corrosion, weather-resistant, crack-proof, flame -retardant

UPVC butterfly valve has excellent chemical corrosion resistance, and its flame retardant property is self-extinguishing. Excellent aging resistance and UV resistance, the normal service life is greatly extended compared with other pipeline systems.



product-223-198

Quick opening and closing

The opening and closing is convenient, quick and labor-saving; the structure is simple and the weight is light, and it is suitable for large-diameter valves. The opening and closing torque is small, because the butterfly plates on both sides of the rotating shaft are basically equally affected by the medium; and the direction of the torque is opposite, so opening and closing is less labor-intensive.



Product Features

product-537-264



The hygienic indicators of UPVC electric butterfly valve meet the requirements of national health standards, and the heavy ion content in the door quality reaches the ultrapure water standard. It has good strength and toughness, and the pipe wall is clean and smooth. Chemical corrosion resistance, flame retardant property is self-extinguishing.



product-448-426

The actuator and sphere can be assembled at multiple angles to facilitate space allocation requirements. On-off type, contact type, opening signal, intelligent type.



product-432-417

The cylinder body is made of extruded aluminum alloy and has been hard anodized. The surface is solid and wear-resistant, light in weight and beautiful in appearance.



Basic Parameters

product-526-208



1.Wide temperature range: -40~+950C.

2. It has excellent strength and toughness.

3. It has excellent chemical resistance. 4. The flame retardant performance is self-extinguishing.

5. Low thermal conductivity, about 1/200 of steel

6. The content of heavy ions in the medium reaches the standard of ultrapure water.

7. Sanitary indicators meet the requirements of national sanitary standards.

8. Light weight, convenient installation and long life.

product-536-275



More Product Display

product-526-366
