ASME Class 150 2 Piece, Full Port, Flanged End Ball Valve with Direct Mount Actuation Design
Description
The series is a two piece, full port, flanged end ball valve with ISO 5211 compliant direct mount actuation pad. The E10 is available in sizes ranging from ½" to 8" with ASME Class 150 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" – 8"
• CF8M and WCB Bodies/316SS Trim
• Fire Safe to API 607 6th Edition
• Built-in ISO 5211 Mounting Pad for Easy Automation
• ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design
• TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
• TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded Stem Packing
• Lockable Lever Handle or "T" Handle
• IEC 61508, SIL 2 capable
• 30° & 60° V-Notch Optional Control Ball
Standards
• Design: ASME B16.34, API 608
• Fire Safe: API 607, ISO 10497
• Face to Face: ASME B16.10
• Wall Thickness: ASME B16.34
• End Flange: ASME B16.5
• Inspection and Testing: API 598

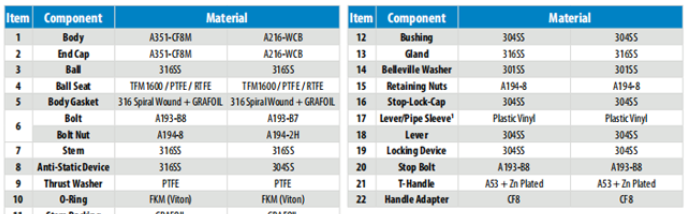

Materials of Construction
Dimensions
ASME Class 300 2 Piece, Full Port, Flanged End Ball Valve with Direct Mount Actuation Design
Description
The series is a two piece, full port, flanged end ball valve with ISO 5211 compliant direct mount actuation pad. The E10 is available in sizes ranging from ½" to 8" with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
Size Range: ½" – 8"
• CF8M and WCB Bodies/316SS Trim
• Fire Safe to API 607 6th Edition
• Built-in ISO 5211 Mounting Pad for Easy Automation
• ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design
• TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
• TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded Stem Packing
• Lockable Lever Handle or "T" Handle
• IEC 61508, SIL 2 capable
• 30° & 60° V-Notch Optional Control Ball
Standards
• Design: ASME B16.34, API 608
• Fire Safe: API 607, ISO 10497
• Face to Face: ASME B16.10
• Wall Thickness: ASME B16.34
• End Flange: ASME B16.5
• Inspection and Testing: API 598
Materials of Construction
Dimensions
ASME Class 150 1 Piece, Reduced Port, Flanged End Ball Valve with Bracket Mount Actuation Design
Description
The series is a one piece, reduced port, flanged end ball valve with bracket mount actuation pad. The E15 is available in sizes ranging from ½" to 6" with ASME Class 150 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" - 6"
• CF8M and WCB Bodies/316SS Trim
• Fire Safe Design Approved
• Built-in ISO 5211 Mounting Pad for Easy Automation
• TFM 1600 Seat Material (PTFE, RTFE Options)
• Anti-Static Devices for Ball-Stem-Body
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
Standards
• Design: ASME B16.34, API 608
• Wall Thickness: ASME B16.34
• End Flange: ASME B16.5
• Inspection and Testing: API 598
Description
Dimensions
ASME Class 300 1 Piece, Reduced Port, Flanged End Ball Valve with Bracket Mount Actuation Design
Description
The series is a one piece, reduced port, flanged end ball valve with bracket mount actuation pad. The E15 is available in sizes ranging from ½" to 4" with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and a variety of seat materials to choose from.
Features
• Size Range: ½" - 4"
• CF8M and WCB Bodies/316SS Trim
• Fire Safe Design Approved
• Built-in ISO 5211 Mounting Pad for Easy Automation
• TFM 1600 Seat Material (PTFE, RTFE Options)
• Anti-Static Devices for Ball-Stem-Body
• Blow-out Proof Stem
• Pressure Balance Hole in Ball Slot
Standards
Design: ASME B16.34, API 608
• Wall Thickness: ASME B16.34
• End Flange: ASME B16.5
• Face to Face: ASME B16.10
• Inspection and Testing: API 598
Description
Dimensions
