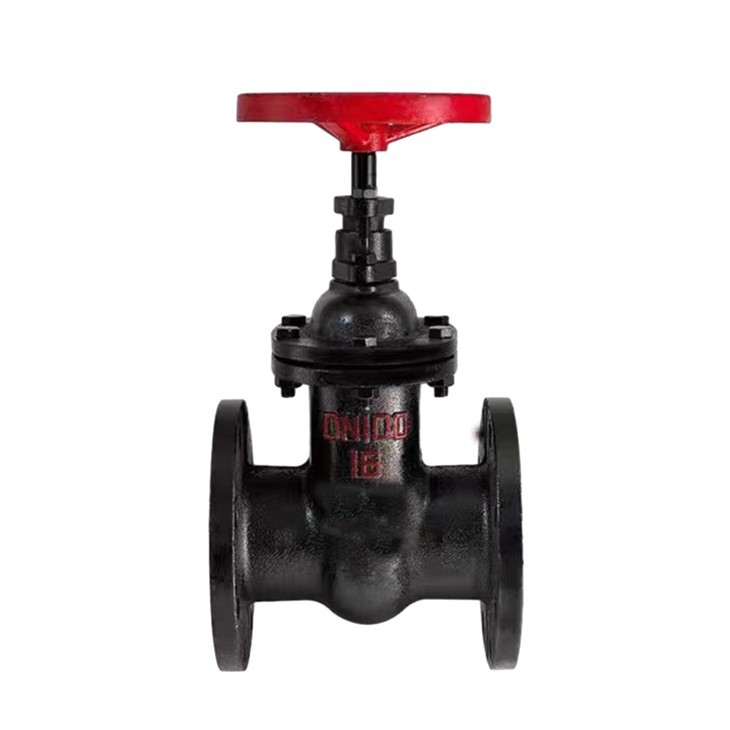

Flange Copper Sealing Gate Valve
Model preparation
Gate valve type representation: Z; Additional codes for gate valves: WZ-represents bellows gate valve, DZ-low temperature gate valve, NKZ-vacuum gate valve, PZ-knife gate valve;
The drive mode indicates: manual without code (usually omitted according to regulations), 2-electro-hydraulic, 3-worm gear, 5-bevel gear transmission, 6-pneumatic, 9-electric; The connection method indicates: 4-flange connection, 6-welding, 7-wafer type; Structural form indicates: 0-resilient gate, 1-rising stem wedge single gate, 2-rising stem wedge double gate, 3-rising stem parallel single gate, 4-rising stem parallel double gate, 5-Non rising stem wedge type single gate, 6-Non rising stem wedge type double gate, 7-Non rising stem parallel single gate, 9-Non rising stem parallel double gate; Sealing material: W-valve body direct processing, T-alloy, X-rubber, F-fluoroplastic, H-Cr stainless steel, Y-tungsten carbide, M-Monel alloy; Pressure grade indication: PN1.0-32Mpa, 16-1.6MPA indicates pressure of sixteen kilograms, 150LB-1500LB indicates American standard pound pressure, 5-63K indicates daily pressure; Valve body materials: Z-gray iron, Q-ductile iron, T-alloy, C-carbon steel, P-stainless steel 304, R-stainless steel 316, V-chromium molybdenum vanadium steel
Advantages
Product Specifications
Features
Light weight: The body is made of high-grade ductile black cast iron, which is about 20% to 30% lighter than traditional gate valves and is easy to install and maintain.
Flat-bottomed gate seat: Traditional gate valves often have foreign objects such as stones, wood blocks, cement, iron filings, debris, etc. accumulated in the groove at the bottom of the valve after the pipe is washed with water, which can easily lead to leakage due to inability to close tightly. The bottom of the elastic seat seal gate valve adopts the same flat bottom design as the water pipe machine, which is not easy to cause debris accumulation and allows the fluid to flow smoothly.
Overall rubber coating: The gate uses high-quality rubber for the overall inner and outer coating. Europe's first-class rubber vulcanization technology enables the vulcanized gate to ensure precise geometric dimensions, and the rubber and ductile cast gate are firmly connected and are not easy to fall off and Good elastic memory. water
Precision cast valve body: The valve body is precision cast, and the precise geometric dimensions ensure the sealing of the valve without any finishing work inside the valve body.
Applications
