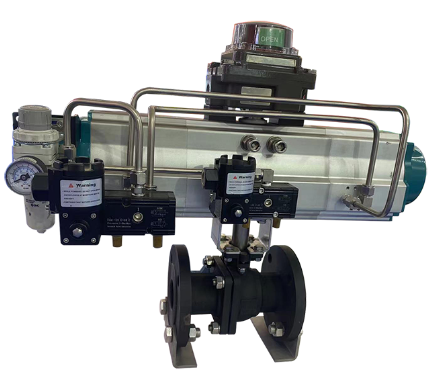

PNEUMATIC BALL VALVE
Valve body structure: full bore/reduced bore design, 304/316L stainless steel or carbon steel, corrosion resistant, high pressure resistant (PN16-PN64).
Ball process: precision grinding and polishing, surface hardness HRC ≥ 58, sealing leakage level reaches ANSI VI level, achieving zero leakage.
Flange standard: various flange interfaces such as national standard GB, American standard ANSI, German standard DIN, etc., suitable for global pipeline systems.
TECHNICAL ADVANTAGES
Intelligent pneumatic drive system
High-precision positioning: with AT/GT series pneumatic actuators, supports 4-20mA/0-10V signal feedback, positioning accuracy ±0.5%.
Fast response: switching speed ≤ 1 second, meeting emergency cut-off requirements (optional explosion-proof type, Ex d IIB T4 certification).
Double acting/spring reset: flexibly respond to air failure, spring reset type can automatically return to a safe state (fully open/fully closed).
Ultra-durable sealing solution
Valve seat material: PTFE reinforced graphite/metal seal, temperature resistant -40C~+450C, resistant to particle wear.
Double sealing guarantee: main seal + emergency stuffing box design, even long-term high-frequency opening and closing can still maintain sealing reliability.
TECHNICAL PARAMETERS
Nominal diameter DN15~DN600
Pressure level PN16~PN64 (optional Class150~600)
Valve body material 304/316L stainless steel, WCB carbon steel
Connection method Flange (GB/ANSI/DIN), butt welding
Applicable media Water, steam, oil, acid and alkali solution, gas
Ambient temperature -30C~+80C (special customization can reach +120C)
Gas source pressure 0.4~0.6MPa
WHY CHOOSE US
Solve the pain points of the industry
Chemical industry: corrosion-resistant materials + zero leakage design to eliminate the risk of leakage of high-risk media.
Energy and power: high temperature and high pressure tolerance to ensure safe and stable operation of steam pipelines.
Full life cycle service
Warranty commitment: 1-year warranty for core components, leakage replacement service.
Quick response: 24-hour technical consultation, 7-day delivery for urgent orders.
APPLICATIONS
Emergency shut-off of oil storage and transportation pipelines
Requirement: Quickly cut off crude oil transportation to prevent leakage and spread.
Solution: DN400 pneumatic flange ball valve + explosion-proof actuator + fire-proof coating, complete valve closing within 0.8 seconds.
Flow regulation of pharmaceutical purified water system
Requirement: Precise flow control in sterile environment to avoid medium contamination. Solution: 316L mirror polished ball valve + IP67 protection actuator, supporting 0-90° stepless adjustment.
SELECTION
Confirm the media type: corrosive/non-corrosive, particulate content.
Determine the operating parameters: pressure, temperature, flow requirements (full bore or reduced bore).
Select the actuator: single-acting/double-acting, explosion-proof level, signal feedback requirements.
Adapter flange standard: match the national standard/American standard/German standard according to the pipeline interface.
