Actuator Control Board GAMX-2KP
Product specifications

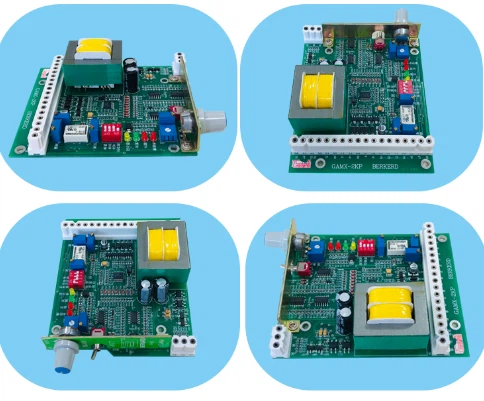

GAMX-2KP Electric Actuator Control Board
Programming Key
Definition:
(1)SET setting button: In the hand/automatic running state, press this button for less than 5 seconds, and the hand can be automatically switched. You can enter the menu unlock password only by pressing this button for 5-10 seconds while the unit is running. For more than 10 seconds, enter the factory reset page. Press this button in the main menu to enter the menu page. Press this button under the menu page to save the settings and exit to the main menu. Press this button in the main menu "End" to return to the running status of the unit.
(2)Positive key: Press this key in the running state of the machine, the motor rotates forward. Press this button in the setting state to increase the setting value. When the set value is increased or decreased, pressing this button for more than 3 seconds will quickly adjust the value.
(3)Reverse button: press this button in the running state of the machine, the motor reverses. Press this button in the setting state to decrease the setting value.
(4) GAMX-2KP Bernard electric actuator control panel one-button setting button: Press this button to automatically set the zero full setting in the running state of the machine. (It is necessary to adjust the opening position-limit and the closing position-limit to correspond to themechanical zero fullness).
Parameter
Product parameters:
Power supply voltage: 220V/380V, 50HZ
Input signal: 4-20mA
Output signal: 4-20mA
Running direction: standard: 4mA valve closed, 20mA valve open
Reverse: 20mA valve closed, 4mA valve open
Interrupt hold:
Standard: The actuator remains in place when the signal is lost
The machine runs automatically: The machine automatically runs to make the positioner module simulate a 4-20mA signal, which is 0% adjustment of the actuator operation.
The positioner 0% is to make the actuator accept 100% adjustment of the 4mA off command; the positioner 100% is to make the actuator accept the 20mA open command.
Dead zone: Adjust by dead potentiometer (P3)
Dead zone range: 0-3% adjustable
Input impedance: 250Ω Output impedance: 400Ω
Product Display
