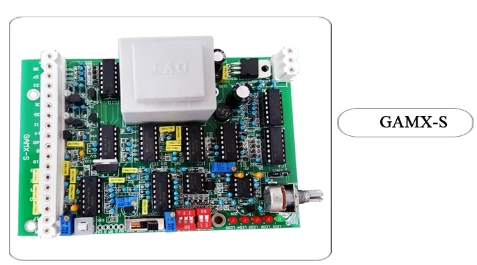

GAMX-S Control Board
Product Specifications
GAMX electronic power valve control board accessories
GAMX-S Operating temperature : +32°F to +158°F (0°c - 70°c)
Storage temperature : -40°F to + 185°F (-40°c - 85°c)
Relative humidity : 0 to 90% non-comdensing
1. Input signal: 4-20 mA
2. Output signal: 4-20 mA
3. Direction: standard: 4 mA------valve closed
20 mA-----valve opened Control signal: 4 mA------valve opened
20 mA-----valve closed
4. Dead zone: 0-3%
5. Operated automatically
6. Adjustment: 0% to receive 4 mA signal
7. Adjustment: 100% to receive 20 mA signal
Digital micro-control allows :
Pushbutton proramming - eliminates Span and Zero pots
10-bit resolution
Off-line calibration - eliminates the need for loop calibrators
We also supply:
1. Electric actuator logic control panel/board CI2701,position control board GAMK, transformer EN, potentiometer board CIPOT1, etc.
2. China electric actuator accessories: reducer, motor, control box, GAMX-T-2001,GAMX-D,GAMX-2004,GAMX-2005,GAMX-2006, GAMX-2007,GAMX-2K GAMX-2KP,GAMX-2010N,GAMX-A,GAMX-B, GAMX-C series circuit board, braking board, output board, YF-220A, power control module, ptentiometer, cam, etc.
3.GAMX-D,GAMX-2K,GAMX-T-2001,GAMX-T-2004,GAMX-2003,GAMX-2003-T,GAMX-2005,GAMX-S518S,GAMX-D-2000,-GAMX-2K,GAMX-2KP ,GAMX-L1840,GAMX-2007,GAMX-2010, GAMX-2014,PM2,PM3.
