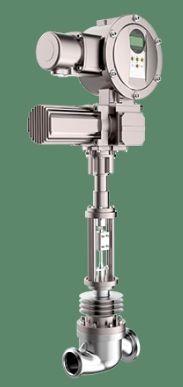

2SA5..Series Linear Electric Actuators
2SA5..Series Linear Electric Actuators Technical Data
LE...Series Accessories Device
Output thrust (KN) of linear actuator = rotary actuator output torque (Nm) / inear propulsion plantconversion coefficient if)
_inear motion speed of linear actuator output shaft = rotary actuator output shaft speed x linearpropulsion plant pitch

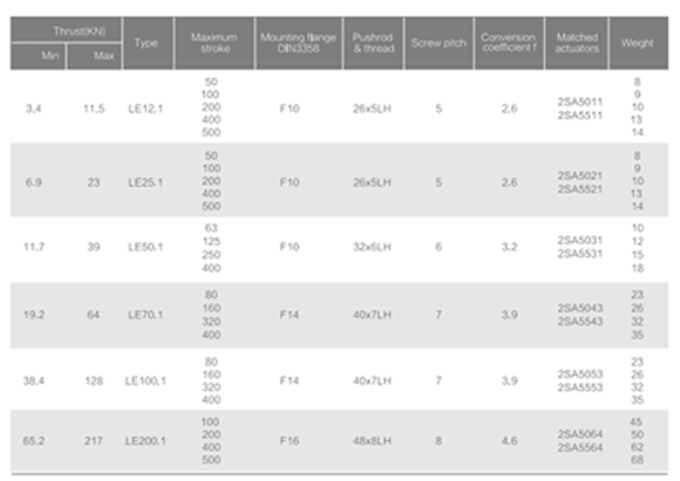

LE...Series Linear Propulsion Plant Technical Data
Design Structure
*Simplify Structure,reasonable -- use electroniccomponentsinstead of mechanical componentsadopt modular structure.
*Protection grade:lowest level is IP67,meet theDIN EN 60529 standard.(Note: can provide lP68protection grade when needed)
*Separate installation: when installation space notenough, the temperature is too high, the vibration isexcessive or the debug and test on-site is hard.then intelligent control unit and main part can beinstalled separately.
Box body material
Use aluminum alloy with strong corrosionprotection.Compare to traditional box body.it hasthe advantages of lightweight and high strength.Even there is no-paint on the box body. Surpass 5Profitron can be used outdoors under the normaenvironment.We still can provide special paintwith strong corrosion protectionin hostileenvironments(such as use in cooling tower).
Operate actuator on site through open/close button
Use aluminum alloy with strong corrosionprotection.Compare to traditional box body.it hasthe advantages of lightweight and high strength.Even there is no-paint on the box body. Surpass 5Profitron can be used outdoors under the normaenvironment.We still can provide special paintwith strong corrosion protectionin hostileenvironments(such as use in cooling tower).
Stainless steel bolt
In order to ensure superiorcorrosion resistance inlongterm.all the camping unitsare using stainless steel.
Handle
It can be locked to protect unauthorized operate.
Encoder
t adopts the absolute encoder with highprecision,which makes control precisionof the actuator can reach 0.3%
