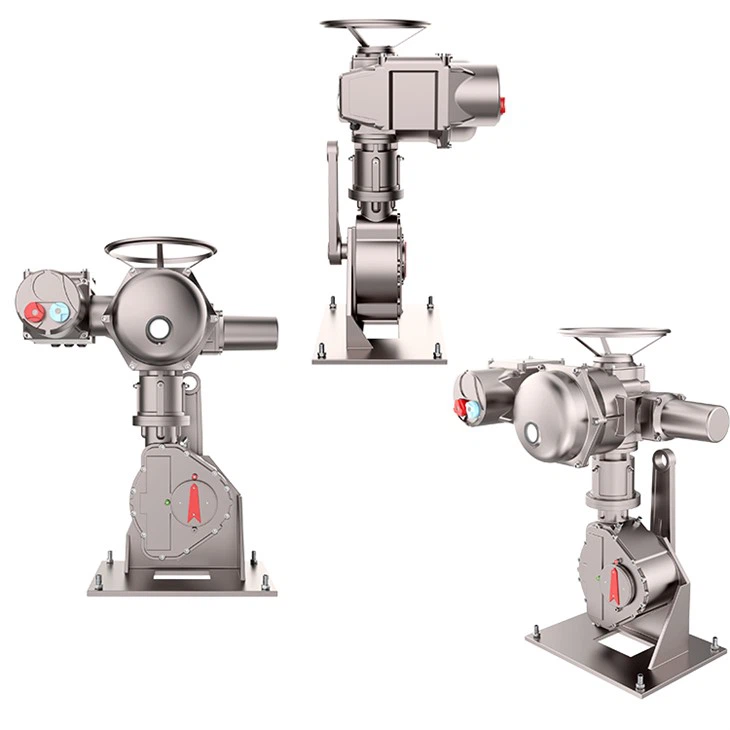

Electric actuator
The electric actuator is suitable for the control of valves used in low temperature environment. Based on its ordinary type, the electric actuator takes corresponding measures on the material of the main box and other force parts, the material of electric control devices and wires, the material of seals, the grease, the performance and power selection of the motor to achieve the low temperature performance that the product should have. Based on the test methods and procedures of the introduced technical documents, the low temperature test was carried out on the typical seat prototype, which achieved the ideal effect and reached the The test requirements were met and the actual conditions of use were met.
Environmental requirements
Working environment: no flammable, explosive and corrosive media protection level: IP65 -IP67 using power: 380V, 50Hz related standards Comply with: GB/T2423.1-2001 "Electrical and Electronic Products Environmental Test Part 2: Test Methods Test A: Low Temperature" Comply with: GB4208-1998 "Shell Protection Grade (IP Code)" in IP65-IP67 Comply with: JB/T8528-1997 "General type valve electric device technical conditions
Electric Actuator Details
Applicable temperature range
Applicable temperature range
Low temperature type I temperature range -25°C~-40°C
Low temperature type II temperature range -40°~-500°C
Note: The ambient temperature of the low temperature type II electrical equipment should not exceed 40°C Inspection process
The method is to place the electrical equipment (with a test bench) in a low-temperature freezer and keep it in an ultra-low temperature environment of -55°C for a long time, and then carry out relevant performance tests to ensure normal operation and good performance.
Low temperature can reach -60 degree
|
Motion Mode |
|||||||
|
Quarter-turn |
Multi-turn |
Linear-turn |
|||||
|
Torque ＜4000Nm |
Torque 1～100KNm |
Torque 60～6000Nm |
Torque 10～10KNm |
||||
|
Environmental Conditions |
General Environment |
Control Mode |
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
|
Explosive and Flammability |
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
||
|
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
Size can be customized according to requirements
Integrated regulating type Wiring Diagram
Can be equipped with valves
