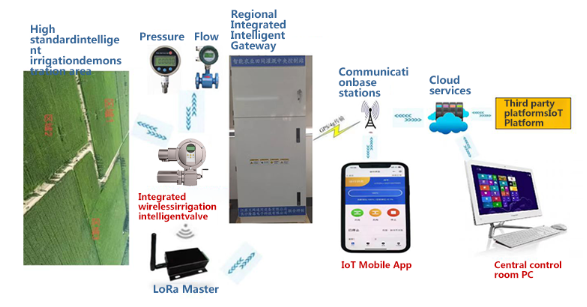

A Province Province Irrigation District Pipe Network Intelligent Measurement and Control Overall Control Program

product-587-307

Integrated Wireless Intelligent Irrigation Valve Function Description

1.The solar panel is directly installed on the intelligent electric installatioino need to install separately

2,Integrated wireless intelligent denso has built-in LORA wireless communication function

3,Integrated wireless intelligent electric device is DC24 160W brushlessmotor

4,The pressure and flow rate of each Gedankou intelligent control pipelindirectly enter into the integrated wireless intelligent denso module on thepipeline through the sensor signal, forming a closed-loop control of balancepipeline pressure and flow rate.

5,The irrigation valve opening degree can be set locally or on the regionaintegrated intelligent gateway in multiple sections. and can realize the softstart action function ofopening and closing the valve

6,With remote. local, cell phone APP.central control PC terminal 4Gmultiple control methods

7,Integrated with solar power supply unit, designed with battery powermanagement system, timely monitoring of battery voltage monitoring

8.,With pipeline blockage protection, motor overheating and overcurrentprotection, valve limit protection, real-time measurement and control of thopening degree, low battery voltage alarm and other functions9.LORA transmission distance in the open area, the effective transmissiondistance of not less than 1.2KM10, no external utility, all by solar power, battery storage, under cloudyskies, continuous operation of not less than 5 days, electric valve openingand closing 50 times to. each valve opening travel time of not less than 30seconds

product-346-360

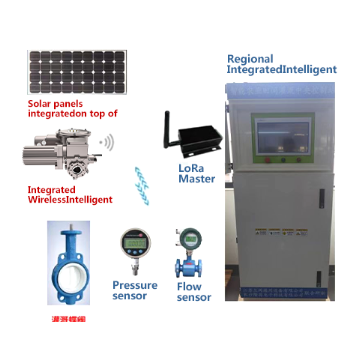

Integrated Wireless Intelligent Irrigation Valve Function Description

product-612-397

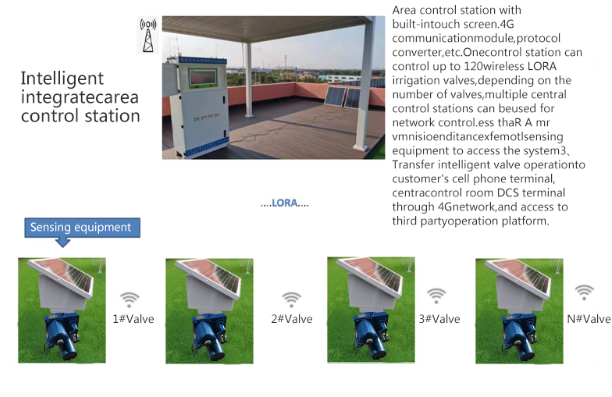

Mobile APP wireless remote control electric valve overview:

The mobile phone APP wireless remote control electric valve control part realizes the local valve opening and closing signal output control and open position signal acquisition (optional). Low post-maintenance cost, strong environmental adaptability; high communication frequency. The centralized control device is composed of switch knob/button, box body, and communication control circuit board (industrial computer/pc/tablet/mobile phone is optional). The centralized control device and the valve unit realize one-to-many communication, and the opening and closing of the valve is unified by the centralized control center control. The valve unit realizes the shut-off control of the pipeline fluid. After the area location is divided and the communication address is bound, it can be remotely controlled by the corresponding switch knob/button on the centralized control device

What are the monitoring functions of wireless communication valve electric actuators?

1. Non-invasive design, simple and intuitive debugging;

2. Full viewing angle LCD menu display interface: Chinese and English are optional;

3. Various fault information, opening of valve head, timely load current, input current signal value, working state of valve head, control mode selection, bus function selection, stroke setting, etc.;

4. All parameters and status of the valve head can be displayed and set on the LCD display;

5. Four non-through magnets control the operation of the Hall element in the electrical housing;

6. Compared with other knobs or touch operation, the dimension is beautiful and the operation is convenient.

What are the characteristics of wireless communication valve electric actuators?

1. Real-time monitoring of the working status of electric valves;

2. Support local and remote equipment maintenance;

3. Count the number of link valves;

4. The remote monitoring equipment has reserved interfaces, which can be connected to electromagnetic flowmeters and pressure transmitters, which is convenient for later project expansion. Under this function, the alarm linkage control function can be expanded.

product-510-301

What are the characteristics of wireless communication electric actuator remote control valve electric device?

1. The device is dust-proof, rain-proof, light-corrosion-proof, and its protection level is IP55 (special order IP65, IP67).

2. The torque control mechanism is reliable in action, easy to adjust, and high in torque repeatability.

3. The three-phase asynchronous motor of the valve electric device is adopted, which has the characteristics of large starting torque, small rotational inertia, long service life, etc., and F-class insulation.

4. The duty cycle is 10 minutes for a short time (30 minutes for special order).

5. Equipped with a mechanical (conventional type) or liquid crystal (conventional type without) valve position indicator, which can intuitively know the opening of the valve.

6. Hand-electric switching: fully automatic switching, when manual operation is required, the electric device can be operated directly by transferring the hand wheel; when electric operation is required, direct electric operation is required, without switching the handle. (Caution: Do not transfer the handwheel when running electrically!)

7. There are triple protections such as stroke limit, over-torque limit and mechanical limit switch, which guarantee the safety of the driving device and valve.

8. Power supply: conventionally 380V (±10%), 50Hz (special order three-phase 660V, 415V, single-phase 220V, 60Hz).

9. Explosion-proof mark: ExdIIBT4 (conventional type is not explosion-proof).

10. Relative humidity of the environment: ≤95% (at 25°C).

11. Ambient temperature: -20~60℃ (special order -40~100℃)

product-581-284 .

4G control valve electric actuator mechanism

The 4G control valve electric actuator mechanism is using the Internet of Things technology to connect the electric actuator to a dedicated network, so as to realize the centralized control, management, data storage and analysis of the intelligent valve. The system is flexible in configuration, convenient in management, and has strong reliability and reliability. It can collect and store relevant status data of smart valves distributed in different regions in real time and for a long time, and feedback fault and alarm information in time. In addition, early warning settings can be made for different models, different applications and different operating parameters. Once the operating parameters of the actuator exceed the predetermined normal fluctuation range, the system will immediately generate an alarm and notify relevant personnel in time.

Wireless cloud platform controls electric actuators Internet of things wireless control actuator Power specifications
