Application

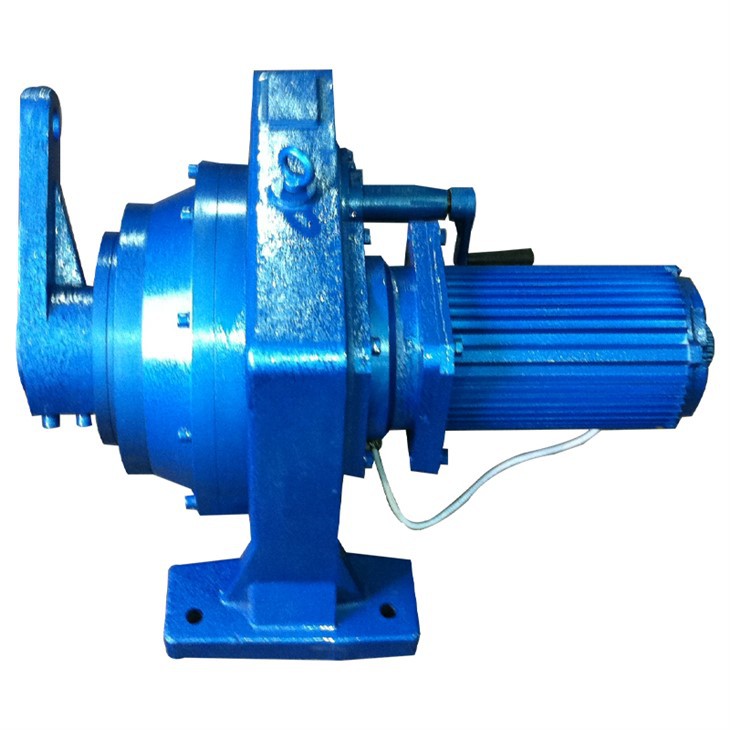

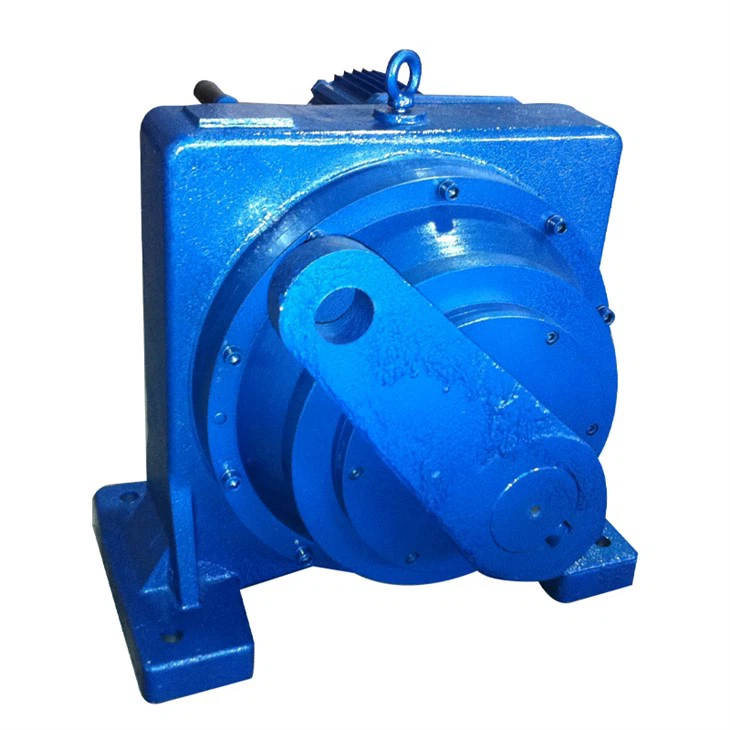

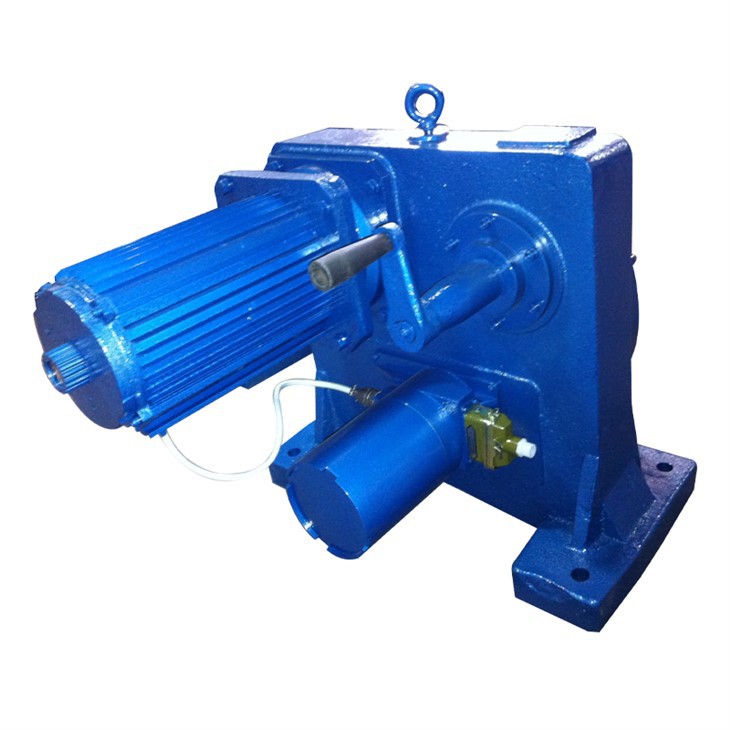

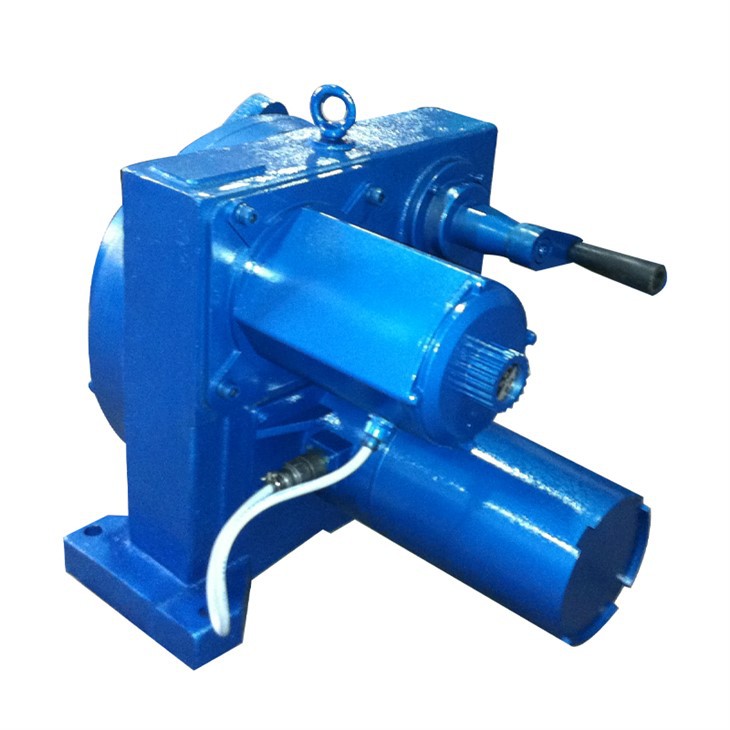

DKJ electric actuator, an execution unit in DDZ type electronic unit combined instrument, accepts signals from a regulating unit (or computer) and automatically controls the actuator to complete
regulating tasks. It is widely applied to power stations chemical, petroleum, metallurgy, building materials,heat supply, water treatment and other industries.
DKJ type electric actuator with various electric Manipulators can achieve undisturbed switching of"Manual-Automatic of the regulating system for remote manual operation on an object to be regulated in a timely manner.
All the actuator position transmitters produced by our company adopt the latest sensory packages be reference to the latest circuits of foreign company.
Essential parameter
|
DKJ,SKJ,ZKJ is the abbreviation of rotation angle which express different control features and installation modes combine to the following letters |
|
|
1 |
M type means on-off module actuation |
|
2 |
D type,DY-JT type means electronic(regulating) module actuation |
|
3 |
Z type means direct mounted actuation;ZM type means on-off direct-mounted; ZD type means electronic direct-mounted |
|
4 |
B type means explosion proof actuation;BM type means on-otff explosion proof; BD type means electronic explosion proof |
|
5 |
F type means electronic(regulating) module actuation |
|
6 |
Y type means electronic((regulating)module actuation |
|
7 |
EX type means explosion proof or digital display modulating actuation |
|
8 |
CX type meansfeedback signal DC 4-20mA with electric limite switch travel |
|
9 |
Our company can customized according to customer's requirement |
Main Technical Parameters
1.Input signal: Type m 4-20mA DC
2.Input channel: 3
3.Input channel impedance: Type II 250Ω
4.Output torque: See table above
5.Total travel time: See table above
6.Output signal: 4-20mA Dc, on-load capacity≦750Ω
7.Limit of basic error:±2.5%
8. Dead zone: 0.5%-1.5% adjustable
9. Damping characteristic:≦3 half cycles
10. Return difference:≦1.5%
11. Power supply voltage:220V (±10%, ±15%) Frequency 50Hz
12. Service environment temperature: Actuator:-10~+55°C or -25~+70°C; amplifier. 0~+50°C
13. Relative humidity of service environment: Actuator:
≦85% (without corrosive substances in ambient air)
Foot-plate Mounted Customization
Color can be customized
Live Application
100% replacement of field electric actuators:
Same model
Same appearance
Same color
Same internal structure
Same installation size
More competitive prices
Better service
Overall and Installation Dimensions
The product has reasonable structure, strict production technology and quality management, so that the high reliability of the actuator is ensured, with Mean Time Between Failure (MTBF) >25000 hours.2.The position transmitter switching circuit has high induced voltage resistance, and its performance exceeds similar products at home and abroad.
The travel control cams can be independently adjusted without interference, so that the adjustment is easy and convenient.
The AC single-phase motor is used in the high torque actuator to bring convenience to the use of the automatic control system.
The motor brake wheel made of special materials has the characteristics of reliable braking, long service life, and superior to similar products.
