Description

The QT series quarter-turn valve electric actuator can operate with butterfly valve, ball valve and cock valve and other kinds of quarter-turn valves. It is compact and light, which is featured by high efficiency, high reliability, high protection class and 1ow noise. Both remote control and local control are available. This product has been applied to many fields, such as petroleum, chemicals,electricity, water treatment and paper-making industry.

[Working Environment and Main Technical Parameters]

--Optional power supply: AC 220 V AC 380 V.

--Ambient temperature :-25 C~+70 C.--Protection level: IP 67.

--Relative humidity:< 90% ( at 25 C).

--Working time: Short time of 10 min.

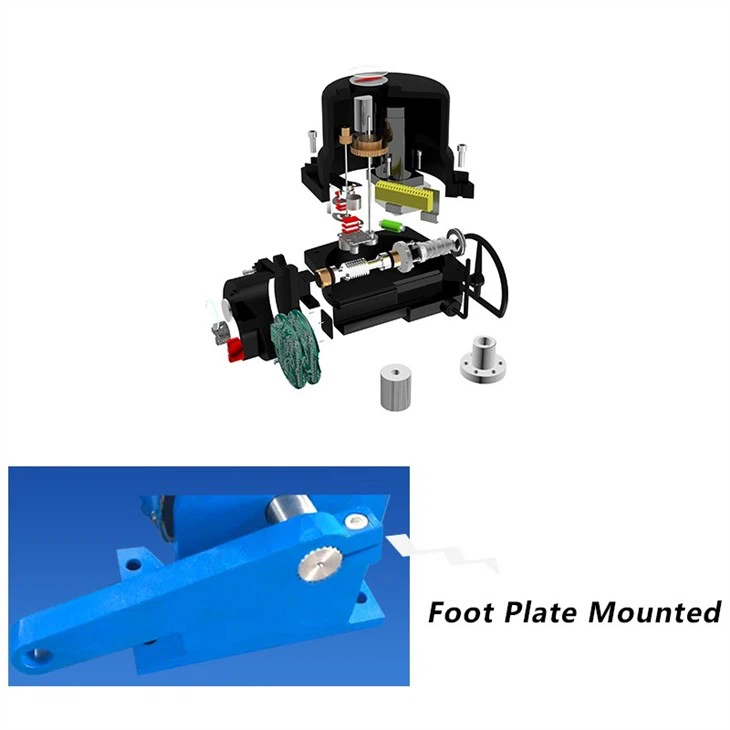

The foot plate type QT angular stroke electric actuator is connected to the valve and other equipment as a wall foot plate type. The imported series of electric actuators are suitable for part turn valves (such as butterfly valves, ball valves and dampers, etc.), and imported electronic components are used. , High-quality aluminum alloy die-casting shell, fine and smooth, small size, light weight, maintenance-free, strong corrosion resistance and other excellent performance, can be used in narrow places. The products are widely used in building automation, water conservancy, papermaking, electric power, chemical industry and other automatic control systems, power equipment, environmental protection chemical industry, thermal power industry, petrochemical industry, pipeline engineering, water conservancy engineering, valves, dampers and other industries.

正在上传...

The size of the base part can be customized according to the site

QT-(2)_07

QT-(2)_08

QT-(2)_11

QT-(2)_10

Configuration and function

Case/protection

Case/protection	Anti-corrosion grade	Epoxy powder coating for NEMA 4X anti-corrosion grade
	Degree of protection	Standard:IP65 Option:IP67 IP68
	Ambient temperature	Standard:-20...+70℃ Optional low-temperature type:-60...+70℃ Optional:-20...+60℃
	Ex degree	IECEx ATEx custom certification available

Electrical specification

Power supply

Three phase:AC380V---420V 50/60hz

Single phase：AC220V---240V 50/60Hz

Cable input

Standard configuration::2×G1

Explosion-proof configuration:2×G 1 1/4

Control

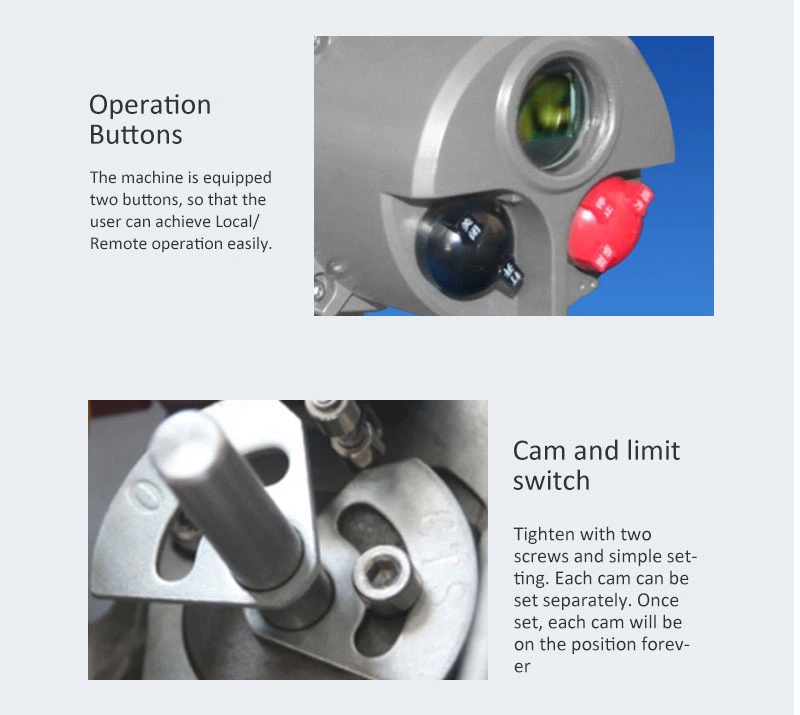

Control	Limit switch	The mechanical limit switch ensures the cam and the drive sleeve coaxially and synchronously. Two switches of 250VAC 16A in open/close direction respectively
	Torque switch	Adopted mechanical torque switch and supplied two switches of 250VAC 16A in open/close direction respectively
	Mechanical stops	One adjustable mechanical stop bolt in open/close direction respectively is supplied
	Position transmitter	Potentiometer Output resistance change. The resistance is 1kΩ . Two-wire system valve transmitter which output 4~20mA DC signal
	On-off type	A. Receive remote passive dry contact, short pulse of signals (inching). B.Receive remote passive dry contact, long pulse of signals (holding). C.Receive active DC 24V signals. D.Receive active AC 220V signals. E. Receive remote DC4-20 mA (regulation type) signals. F. Receive remote DC1-5V, 0- 10V (regulation type) signals. Feedback Signals A. Opening, closing and stopping signals etc (passive dry contacts). B. Accident signals (passive dry contact). C. Valve position signal (DC 4-20 mA, DC1-5V, DC 0-10 V). D. Signals allowing remote control (passive dry contact). Non-invasion intelligent type optional with the following features
	Integration type
	Integration modulating type
	Intelligent type(available)
	Non-invasion intelligent type	LCD full Chinese / English display window and local operation function Self phase- -identifying and phase disconnection protection. IR setting and control. Self- diagnosis technology of operation failures. On-site bus functions, such as Profibus Hart Modbus etc.

Standard configuration parameters/optional configuration parameters

Torque switch limit switch Stall Protection	2 NO/NC 2 NO/NC,250VAC 16A Built-in thermal protection open 150℃±5℃/close 97℃±15℃
Travel Indicator	90°±5° Continuous position indication
Mechanical limit	External adjustment screw
Desiccator	20W(110/220VAC,24VDC)
Wiring hole	2*PE 3/4”(NPT 3/4”)
Lubrication	Grease (EP type)
Material	Steel, Aluminum Alloy, Bronze
Surface Treatment	Anodized
Outer coating	dry powder, epoxy polyester, polyester
DCM	24VDC motor
ALS	Additional limit switch
PIU	1000Ω Potentiometer
CPT	Valve position transmitter Output DC4-20mA

Valve selection table

Model	Butterfly valve	Two-way valve	Three-way valve
QT06	80A	40A
QT09	100A	50A	40A
QT15 QT20	125A 150A	65A 80A	50A 65A
QT30 QT40	200A 250A	100A	80A 100A
QT50		125A
QT60 QT80	300A 350A	150A	125A 150A
QT100 QT150	400/450A	200A
QT200	500A	250A	200A
QT250	600A	300A	250A
