QT Intelligent Explosion-proof Electric Actuator
High efficiency, high reliability, high protection performance
QT series explosion-proof integral valve electric device products have explosion-proof certificates.
The explosion-proof mark is: ExdTBT4Gb

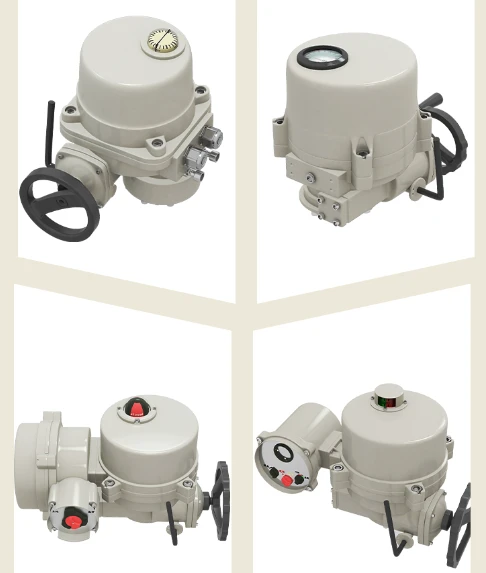

Product structure
Equipped with valve types
Various types
Different colors
Main features and functions
1 . Enclosure Hard-anodized die-cast aluminum housing with epoxy powder-coated exterior for resistance to harsh operating environments
2 . Input voltage range Three-phase：AC340-420V 50/60HZ Single phase：AC220-240V 50/60HZ (Special voltage needs to be customized )
3 . Features Internally, the proportional signal input is collected by the microcomputer control board, and the output command signal is processed and directly drives the motor to realize the work of opening and closing the actuator, and provides proportional signal output, electric field control, and multi-channel programming. .
4. Control type. According to the control signal, it is divided into two types: on-off type and modulating type.according to the power supply, it is divided into two types: single-phase and three-phase.The on-off type only accepts the switching signal provided by the outside, and is processed by the microcomputer control board. After the output command is amplified, it directly drives the actuator motor to perform remote opening and closing actions.Modulating type is on the basis of on-off type, it can receive the proportional signal provided by the outsides. Environment temperature Range of working temperature . < 90% R H non-condensing, - 25 °C ~ + 60 C (special temperature rieeds to be customized), protection level IP8 explosion-proof level ExdlI CT4 GB Duty cycle: short timne 10 minutes.
