ZB+JS400K/F Foot-plate Mounted Rotary Electric Actuator

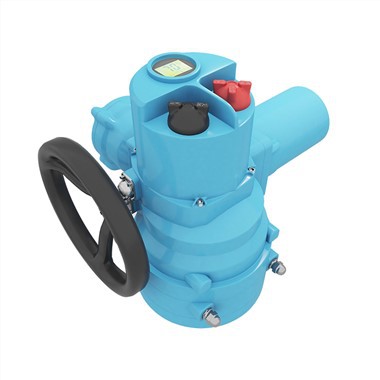

SD Quarter Turn Electric Actuator

ZB+JS series electric actuator is a stereotyped product produced by our company introducing advanced technology. The electric actuators currently produced include three types of adjustment types: multi-turn, quarter-turn and linear-turn, remote control type (integral type), two-position type (on off type) and various special types of actuators. All key components are imported, the processing of components, the screening of components, the assembly of the whole machine to the performance test are all carried out in accordance with the production process and technical requirements, and the products strictly follow the national standards.

ZB+JS series products have many varieties and specifications, complete functions, high precision, light weight, stable and reliable quality, flexible installation, convenient debugging and maintenance, and can be widely used in nuclear facilities, power stations, metallurgy, chemical industry, petroleum, building materials, light industry, and Automatic control of production processes in various industries such as water treatment.

Internal Details

SD series electric actuator is used in the structural design of composite structures, the generalization, standardization, seriation products in parts into consideration is more considerate, makes the product by machinery, motor, control circuit, combined to form a variety of different series and specifications, users in the use and maintenance of the greatly reduced the number of varieties of spare parts needed. The basic base of the product reducer adopts the high strength aluminum alloy, the mechanical structure design is concise and compact, the reliability is high, the volume is small, the weight is light;Multiple connections can be installed in any position and direction.

Human-machine interface liquid crystal display FRYSD series electric actuator adopts LCD liquid crystal display with backlight, which displays the valve position, torque and functional status of the actuator in Chinese or English, numbers, graphics, etc., and is displayed by LED indicators The fully open and fully closed positions of the valve still have strong penetrability even in harsh environments, allowing users to see the status of the actuator at a glance.

On-site operation unit The on-site magnetic rotary switch can switch between on-site and remote control states when completely isolated from the electrical box, and easily control and set the actuator.

Structure Features

Powerful protection function

Dynamic braking is also my company electric actuators standard configuration. It can prevent the motor inertia is too large for the valve overshoot caused by the dynamic brake adopts electric braking method, with accurate valve position sensor valve stroke, by control circuit to control the motor operation and accurate positioning. Automatic phase three-phase electric actuator wiring does not need to consider phase sequenc the control circuit comes with automatic phase detection function, can protect actuator and valve because ofthedamage caused by the phase extension.

Instantaneous reverse protection

Using instantaneous reversal delay control technology, when the actuator receives the reverse operation control signal, the instantaneous reversal logic will automatically delay the action to prevent the impact load from causing damage to the mechanical transmission mechanism

Phase loss protection

The phase loss monitoring system continuously monitors the working power supply. When the working power supply lacks phase, the phase loss monitoring system will terminate the motor to continue running, and send an alarm locally and remotely

Thermal protection of motor

Actuator motor fittings are equipped with thermal protection switch, the switch is connected to the control circuit, abnormal when the motor overheating, internal temperature over 130°, thermal switch automatically disconnect, at the same time, it will control power circuit of the motor, so as to protect the motor and actuator, when the motor cooling switch back on, circuit return to work.

Models

Advantages

FRY is a specialized company that has been producing electric actuators and related products that drive industrial valves since 2014  ,FRY produces product lines that can be applied in various fields,ranging from water treatment such as water supply and sewage to power generation and petrochemical fields, and sells them to customers all over the world.

FRY has a 3Q philosophy to fulfill customer needs.

Quick Delivery

FRY honors delivery dates and proposes the fastest delivery time possible.

Quick Service

FRY operates service organizations and systems to take action as quickly as possible if a problem occurs related to our product.

Quick Response

FRY works to give our customers a sense of trust by responding to customer requests as soon as they are received.

History

2014       Our company was registered in a rental house at the same time,the foreign trade department was established.

2015    The office address was changed to:Zhongbei Town Energy Saving Building this year our company has done 9000 certification CE certification and other qualification certifications, and the main export countries  are southeast Asia, Parkistan Vietnam,Singpore and Thailand.

2016      The foreign trade business gradually increased exporting to South America Chile, Paraguay, Russia and other countries at the same time on the previous basis.

2020       Our company independently developed electric actuator sand applied for utility model patents and appearance patent certificates. The domestic and foreign trade business has grown rapidly,and the domestic trade department has been shortlisted as a fixed supplier for large enterprises such as Sinoma.Red Lion and Huaxin etc.The foreign trade department  has been shortlisted as a fixed supplier for large enterprises such as Sinoma.Red Lion and Huaxin etc.The foreign trade department has undertakenmajor projects such as  large-scale sewage treament.

2021        The annual sales volume of our companys electric actuators has approached 2,000units At the same time the following export qualifications have been handled:ROHS SILATEX etc,among them,the explosion-proof products have also passed the certification of the National Institute of Explosion-proofing.The main products have also passed the authoritative quality.

Status of major certification acquisition
