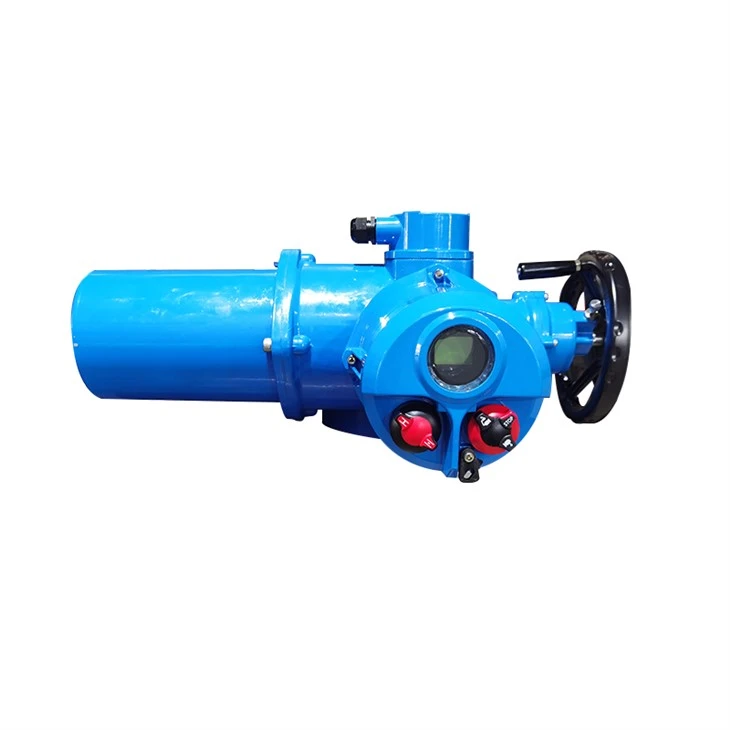

DZW/BA series electric valve actuator is a combined multi-turn electric valve actuator
Main Features
Z type intelligent modulating electric actuator can accept 4~20mA.DC adjustment signal provided by DCS system, and provide 4~20mA.DC position feedback signal and 220V short pulse signal command; intelligent on-off type electric actuator accepts DCS system provided Open, close, stop input signal, and provide fault alarm, (fully closed, fully open) in-position alarm, (full open, fully closed) over-torque alarm, (valve opening, valve closing) state feedback and 4 ~ 20mA feedback Signal.
Main Features

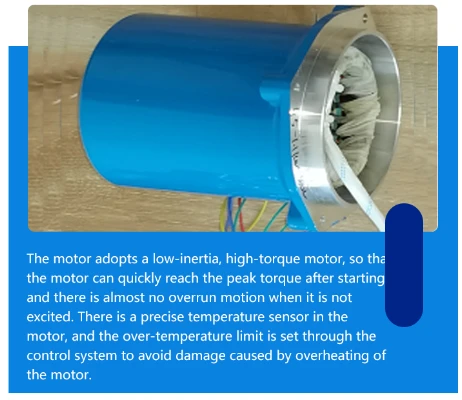

Product structure features
Product details
Opening indicator
The opening indicator and the stroke controller are integrated structures, which are common parts of the whole series. The input gear is driven by the ones gear of the counter. After deceleration, the indicating plate rotates with the process of opening and closing the valve to indicate the opening or closing position of the valve. The shaft of the potentiometer and the indicator plate rotate synchronously for remote opening indication, and the angle between the open position and the closed position of the indicator plate can be changed by moving the number of revolutions to adjust the gear.
Stroke controller
The stroke controller adopts the principle of decimal counter, which has high control precision. Common parts for the whole series. Its working principle is: a pair of large and small end gears in the reduction box drive the active pinion (Z=8), and then drive the stroke controller to work. After the stroke controller is adjusted according to the opening and closing position of the valve, when the controller rotates to the set position with the output shaft, the cam will rotate 90°, forcing the micro switch to act, disconnecting the power supply of the motor, and the motor stops, so as to realize the control Electric actuator stroke limit.
Product comparison
The old intelligent model is made of cast iron, which is strong and durable, and the first wheel is installed on the top. The new intelligent model has an aluminum shell, beautiful appearance, higher protection level, side-mounted first wheel
Performance parameter
Technical parameters of electric actuator
