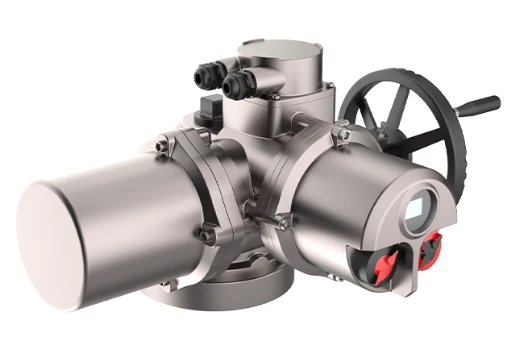

Product type
According to the actuator control performance: basic type and intelligent type; According to the operation mode, the intelligent type is divided into: intelligent on-off type and intelligent modulating type; the intelligent on-off type is used for fully open or fully closed operation of the driven device. Intelligent modulating type, used for the operation where the driven device needs to stop at any position in the middle, pneumatically, and perform precise control. The output stroke of the multi-return actuator series is greater than one circle, the theoretical maximum number of circles is 3600 circles, and it has a self-locking function According to the actuator control mode: outdoor type and explosion-proof type
Structural Features
Power transmission
The power transmission of the actuator adopts a precision reduction mechanism composed of a bronze alloy steel worm. The turbine and worm are separately immersed in lubricating oil to run, which is suitable for the temperature difference of the environment and improves the service life.
Drive motor
The motor adopts a low inertia and high torque motor, so that the motor can quickly reach the peak torque after being aerodynamic, and there is almost no limit motion when it is not excited; there is a precision tracking sensor in the motor, and the overtemperature limit is set through the control system to avoid the motor from overheating. damage
Shell anti-corrosion
The outer surface of the actuator is made of alloy aluminum special metal paint with tough paint film and strong adhesion, which has strong anti-ultraviolet, corrosion resistance and high fullness, which can comprehensively improve the service life and self-cleaning property of the coating, and is suitable for various a harsh production environment.
Connection terminal box
The independent sealed wiring terminal cavity can ensure the integrity of the electrical part of the electric actuator when performing on-site wiring, and at the same time meet the product explosion-proof requirements.
Output Interface
The actuator flange conforms to the ISO5210/5211 (GB12222/12223) standard, and also provides a flange interface conforming to the JB2920 standard, and can provide special customization according to customer requirements
Sealed structure
The actuator adopts double seal design structure. Ensure that the actuator can be completely waterproof and dustproof; the standard product protection level is IP67, and the highest can reach IP68.
Electric actuator inspection item list
