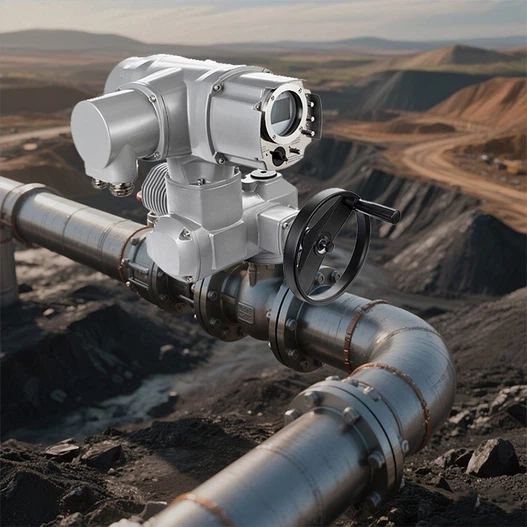

FRYA Multi Turn Motorized Electric Actuator For Mining Industry

FRYA multi-turn electric actuators are suitable for gate valves, globe valves, diaphragm valves etc, which are required to turn 360°. These actuators are featured by compact structure, small volume, beautiful appearance, stable performance, high efficiency, high reliability, high protection capability and so on. Both operation at site and remote controlling can be carried out. So they have been applied in petroleum and chemical industries, power plant, water treatment and paper-making industries.

Spec.:

•Model: Multi Turn Electric Actuator FRYA
•Material: Aluminum alloy
•Ambient Temperature: -20 to 60℃
•Protection grade: IP68
•Torque range: 25Nm to 1000Nm
•Speed: 4 to 180rpm
•Voltage: 380VAC or 220VAC. Special voltage could be customized

Features:

This series electric valve actuator has the following features:

• Compact and robust construction, lightweight.

• Wide range of torque variation.

• Hard anodized aluminum housing inside and outside with external high temperature paint coating for use against severe industrial environment.

• Enclosure uses radial seals & O-rings that provide protection to waterproof IP68.

• It automatically identifies and corrects phases. Automatic phase failure protection protects equipment safety.

• Reliable mechanical torque sensing system providing safe operation in overload condition.

• Large size window and indicator provides better position indication from a distance.

• Number of local position control options to provide easy commissioning and field operation.

Technical data

Multi-turn electric actuators for on-off type with 1-phase AC motor

Model	Output speed Rpm		Torque rang Nm		Numbers of Starts max. 1/h	Valve attachments			Handwheel		Weight Kg
Model	50Hz	60Hz	Min.	Max.	Numbers of Starts max. 1/h	Standard ISO5210	Option DIN3210	Max.φrising stem mm	Φ mm	Reduction ratio	Weight Kg
FRYA-07.2	4	4.8	10	30	60	F07 F10	G0	26 34	160	11:1	21
	5.6	6.7								8:1
	8	9.6								11:1
	11	13								8:1
	16	19								11:1
	22	26								8:1
	32	38								11:1	28
	45	54								8:1
	63	75			30					11:1
	90	108								8:1
	125	150								5.5:1
	180	216		25						4:1
FRYA-07.6	4	4.8	20	60	60	F07 F10	G0	26 34	160	11:1	21
	5.6	6.7								8:1
	8	9.6								11:1
	11	13								8:1
	16	19								11:1
	22	26								8:1
	32	38								11:1	28
	45	54								8:1	28
	63	75			30					11:1	37
	90	108								8:1
	125	150								5.5:1
	180	216		50						4:1
FRYA-10.2	4	4.8	40	120	60	F10	G0	40	200	11:1	28
	5.6	6.7								8:1	28
	8	9.6								11:1	31
	11	13								8:1
	16	19								11:1
	22	26								8:1
	32	38								11:1	40
	45	54			30					8:1	40
	63	75								11:1	43
	90	108								8:1
	125	150								5.5:1
	180	216		100						4:1
FRYA-14.2	4	4.8	100	250	60	F14	G1/2	58	315	11:1	59
	5.6	6.7								8:1
	8	9.6								11:1
	11	13								8:1
	16	19			30					11:1	61
	22	26								8:1	61
	32	38								11:1	63
	45	54								8:1	63
FRYA-14.6	4	4.8	200	500	60	F14	G1/2	58	400	11:1	63
	5.6	6.7		500	60					8:1
	8	9.6		400	30					11:1
	11	13								8:1
	16	19								11:1	66
	22	26								8:1	66

Multi-turn electric actuators for on-off type with 3-phase AC motor

Model	Output speed rpm	Torque range Nm	Nominal power KW	Speed rpm	Nominal current A	Max. current A	Starting current A	Overcurrent prot. device setting
FRYA-07.2	4	30	0.02	1400	0.4	0.3	1.1	0.3
	5.6		0.02	1400	0.4	0.4	1.1	0.4
	8		0.04	1400	0.4	0.4	1.1	0.4
	11		0.04	1400	0.4	0.5	1.1	0.5
	16		0.06	2800	0.6	0.6	2.0	0.6
	22		0.06	2800	0.6	0.7	2.0	0.7
	32		0.10	1400	1.0	1.0	2.5	1.0
	45		0.10	1400	1.0	1.1	2.5	1.1
	63		0.20	2800	0.8	1.3	4.6	1.3
	90		0.20	2800	0.8	1.4	4.6	1.4
	125		0.30	2800	0.9	1.6	4.6	1.6
	180	25	0.30	2800	0.9	1.7	4.6	1.7
FRYA-07.6	4	60	0.03	1400	0.4	0.4	1.1	0.4
	5.6		0.03	1400	0.4	0.5	1.1	0.5
	8		0.06	1400	0.6	0.7	1.7	0.7
	11		0.06	1400	0.6	0.7	1.7	0.7
	16		0.12	2800	0.7	0.9	3.2	0.9
	22		0.12	2800	0.7	1.1	3.2	1.1
	32		0.20	1400	1.7	2.0	4.8	2.0
	45		0.20	1400	1.7	2.1	4.8	2.1
	63		0.40	2800	1.7	2.4	9.5	2.4
	90		0.40	2800	1.7	2.6	9.5	2.6
	125		0.50	2800	1.8	3.2	9.5	3.2
	180	50	0.50	2800	1.8	3.4	9.5	3.4
FRYA-10.2	4	120	0.06	1400	0.5	0.6	2.1	0.6
	5.6		0.06	1400	0.5	0.6	2.1	0.6
	8		0.12	1400	1.1	1.2	3.2	1.2
	11		0.12	1400	1.1	1.3	3.2	1.3
	16		0.25	2800	1.4	1.6	4.7	1.6
	22		0.25	2800	1.4	1.9	4.7	1.9
	32		0.40	1400	2.6	2.7	8.9	2.7
	45		0.40	1400	2.6	3.2	8.9	3.2
	63		0.70	2800	3.2	3.8	17	3.8
	90		0.70	2800	3.2	4.2	17	4.2
	125		1.00	2800	3.7	5.5	17	5.5
	180	100	1.00	2800	3.7	5.8	17	5.8
FRYA-14.2	4	250	0.12	1400	0.5	0.8	2.9	0.8
	5.6		0.12	1400	0.5	1.1	2.9	1.1
	8		0.25	1400	1.1	1.7	5.5	1.7
	11		0.25	1400	1.1	1.8	5.5	1.8
	16		0.45	2800	1.6	3.2	9.5	3.2
	22		0.45	2800	1.6	3.7	9.5	3.7
	32		0.75	1400	2.6	4.2	17	4.2
	45		0.75	1400	2.6	5.3	17	5.3
	63		1.40	2800	4.9	7.4	40	7.4
	90		1.40	2800	4.9	9.5	40	9.5
	125		1.80	2800	5.6	12	50	12
	180	200	1.80	2800	5.6	12	50	12
FRYA-14.6	4	500	0.20	1400	0.9	0.9	5.5	0.9
	5.6		0.20	1400	0.9	1.1	5.5	1.1
	8		0.40	1400	1.8	3.2	9.8	3.2
	11		0.40	1400	1.8	3.7	9.8	3.7
	16		0.80	2800	3.8	5.3	19	5.3
	22		0.80	2800	3.8	5.8	19	5.8
	32		1.60	1400	5.6	7.9	40	7.9
	45		1.60	1400	5.6	9.5	40	9.5
	63		3.00	2800	9.5	14	61	14
	90		3.00	2800	9.5	17	61	17
	125		3.30	2800	10	22	61	19
	180	400	3.30	2800	10	23	61	19
FRYA-16.2	4	1000	0.40	1400	1.5	2.8	11	2.8
	5.6		0.40	1400	1.5	3.1	11	3.1
	8		0.80	1400	2.9	5.3	23	5.3
	11		0.80	1400	2.9	5.8	23	5.8
	16		1.50	2800	5.9	9.5	42	9.5
	22		1.50	2800	5.9	11	42	11
	32		3.00	1400	8.9	14	63	14
	45		3.00	1400	8.9	17	63	17
	63		5.00	2800	12	26	120	26
	90		5.00	2800	12	32	120	26
	125		6.00	2800	13	37	120	26
	180	800	6.00	2800	13	47	120	26
