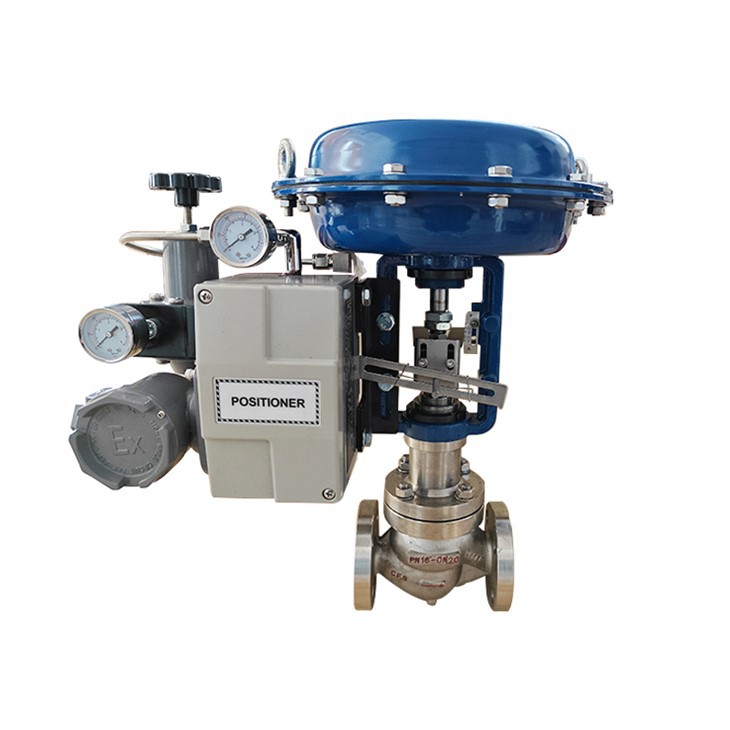

Pneumatic control valve
Product fetures
1. Corrosion resistance: The valve body cavity, valve core, valve seat and valve stem are all lined with 2.5~3mm thick F46, which is resistant to acid, alkali and strong corrosion.
2. Good sealing performance: Double sealing with bellows and packing made of polytetrafluoroethylene to ensure no leakage.
3. Small leakage: Since the valve core and valve seat are soft seals, the leakage is lower than the Class IV standard.
4. It adopts light and small multi-spring actuator, which is small in size, light in weight and high in adjustment accuracy.
Product Usage
The fluorine-lined control valve is mainly composed of two parts: a pneumatic (electric) actuator and a control valve body. The pneumatic actuator is the same as other pneumatic control valves. They receive 4-20ma and other analog signals from the controller to control the opening of the valve to achieve the purpose of adjusting parameters such as pipeline medium flow and pressure. The difference between corrosion-resistant pneumatic fluorine-lined control valves and other ordinary pneumatic control valves lies in the valve body. Some pipelines transport highly corrosive media such as sulfuric acid and sewage. Because the corrosiveness is too strong, control valves made of ordinary metal cannot be used for such media. working conditions. The inner wall and internal components of the electric fluorine-lined control valve that are in contact with the fluid are made of high-pressure injection molding technology, lined with corrosion-resistant and aging-resistant polyperfluoroethylene (F46), and sealed with polytetrafluoroethylene bellows. It solves the problem that metal valves cannot be used in highly corrosive media. Suitable for pipelines in working conditions with highly corrosive media.
Installation instructions
Before installation, check whether the product model, serial number and specifications match, and check whether the parts of the complete machine are defective or loose.
Before installation, the pipeline should be cleaned, and there should be sufficient straight pipe section at the valve inlet and be equipped with a filter. When connecting the flange between the valve body and the pipeline, attention should be paid to the coaxiality.
Before installing the shut-off valve, the pipeline should be thoroughly cleaned
The installation site should take into account the safety of personnel and equipment, making it easy to operate and facilitate disassembly, assembly and maintenance.
The valve should be installed upright and vertically on a horizontal pipe. If necessary, it can be installed at an angle. Try to avoid horizontal installation. If the valve has a large weight or is vibrating, a support frame should be used.
