AT140 pneumatic actuator
Overview
The pneumatic actuator is composed of a compact double (single) piston gear and rack-type structure with precise meshing, smooth transmission, and stable output torque. The cylinder body is made of extruded aluminum alloy and has been hard-anodized, with a hard surface and strong durability. The movable parts of the piston and output shaft are supported by flexible materials to avoid direct contact between metal parts and reduce wear and friction. The cylinder block, end cover, output shaft, springs and fasteners are all treated with anti-corrosion treatment. The adjusting screws at both ends can adjust the opening of the valve. Light weight, flexible transmission and long service life. (Single-acting springs are installed after pre-compression, are easy to install and disassemble, and have good safety)

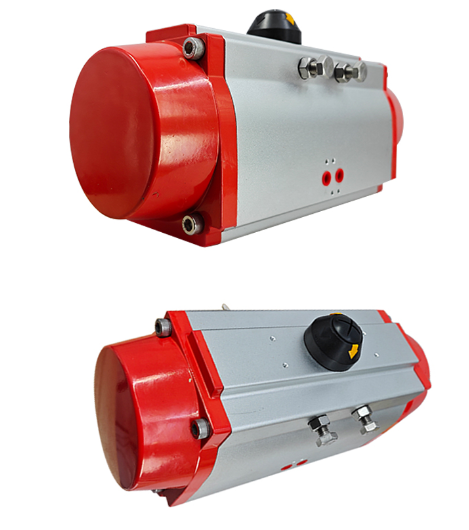

More perspectives
Features
1. Compact double-piston rack-and-pinion structure, meshing, and constant output torque.
2. The aluminum cylinder, piston and end cover are lighter in weight than actuators with the same specifications.
3. The cylinder body is made of extruded aluminum alloy and has been hard anodized. The inner surface is hard and has high strength and hardness. Sliding bearings made of low-friction materials avoid direct contact between metals, have low friction coefficient, flexible rotation, and long service life.
4. The connection between pneumatic actuator and valve complies with ISO5211 standard
5. The air source hole complies with NAMUR standards.
7. The bottom shaft assembly hole of the pneumatic actuator (in compliance with ISO5211 standards) is double square, which facilitates linear or 45° angle installation of valves with square rods.
8. The top and top holes of the output shaft comply with NAMUR standards.
9. The adjustment screws at both ends can adjust the opening angle of the valve.
10. The same specifications include double-acting type and single-acting type (spring return).
11. The direction can be selected according to the needs of the valve, and it can be rotated clockwise or counterclockwise.
12. Install solenoid valves, positioners (opening indication), reply devices, various limit switches and manual operating devices according to user needs.

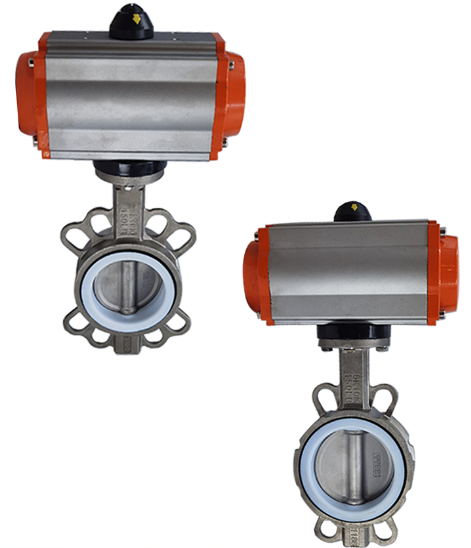

With Valves
